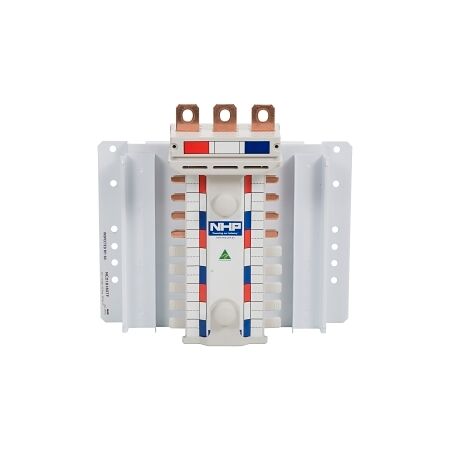

Busbar Chassis 400A 48 Way | 3-Phase Top Feed | IP20 Rated by NHP
Busbar chassis with 400A rated current and 48-way configuration—ideal for industrial and commercial power distribution. Built for efficient circuit management, with durable encapsulated housing and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 48 Way 3Pole Top Feed
Brand: NHP
SKU: NC448183TF
Alternatively Known As: DIN Busbar, Power Distribution Busbar, Electrical Busbar
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 48
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 13 kA
- Short Time Withstand Current (0.3 sec): 25 kA
- Short Time Withstand Current (0.1 sec): 30 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 458mm x 500mm x 100mm
- Weight: 10 kg
Key Features
- 400A rated current for high power applications.
- 48-way configuration for extensive circuit management.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for durability.
- IP20 protection rating suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for efficient power distribution, reducing energy loss.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 400A 48 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
