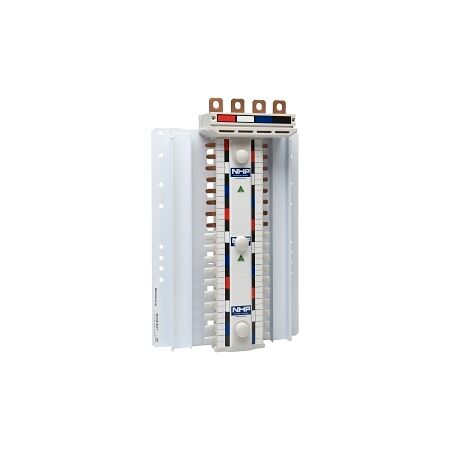

Busbar Chassis 400A 48 Way | 4 Pole Top Feed | IP20 Protection by NHP
Busbar chassis with 400A rated current and 48 poles—ideal for industrial power distribution. Built for durability with encapsulated housing and IP20 protection, perfect for switchboards and distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 48 Way 4Pole Top Feed RNWNBN
Brand: NHP
SKU: NC448184TF
Alternatively Known As: NHP Busbar, Power Distribution Busbar, DIN Rail Busbar
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 48
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.1 sec): 30 kA
- Short Time Withstand Current (0.3 sec): 25 kA
- Short Time Withstand Current (1 sec): 13 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 458mm x 500mm x 100mm
- Weight: 10 kg
Key Features
- Rated current of 400A with 48 poles for efficient power distribution.
- Encapsulated material housing for enhanced durability and safety.
- IP20 degree of protection suitable for indoor applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 400A 48 Way 4Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
Non-Returnable & Non-Cancellable
