Busbar Chassis 400A 54 Way | 3-Phase Top Feed | IP20 Protection by NHP
Busbar chassis with 400A rated current and 54-way configuration—ideal for industrial and commercial power distribution. Built for balanced power distribution, with encapsulated material housing and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

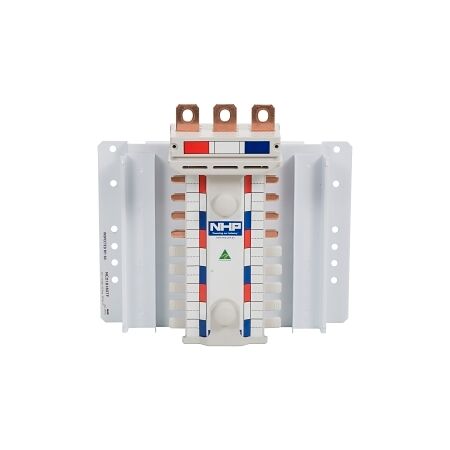

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 54 Way 3Pole Top Feed
Brand: NHP
SKU: NC454183TF
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, Electrical Busbar System
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 54
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.1 sec): 30 kA
- Short Time Withstand Current (0.3 sec): 25 kA
- Short Time Withstand Current (1 sec): 13 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 512mm x 400mm x 300mm
- Weight: 10 kg
Key Features
- 400A rated current for high power applications.
- 54-way configuration for extensive circuit management.
- 3-phase input for balanced power distribution.
- Encapsulated material housing for durability.
- IP20 degree of protection suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 400A 54 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
Non-Returnable & Non-Cancellable
