Busbar Chassis 400A 6 Way | 27mm 3Pole Top Feed | IP20 Protection by NHP
Busbar chassis with 400A rated current and 27mm pitch—ideal for industrial and commercial power distribution. Built for durability with encapsulated material housing and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

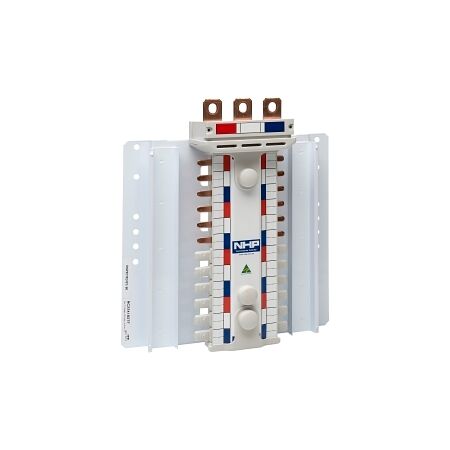

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A 6 Way 27mm 3Pole Top Feed
Brand: NHP
SKU: NCH46273TF
Alternatively Known As: NHP Busbar, Power Distribution Busbar, DIN Rail Busbar
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 6
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 13 kA
- Short Time Withstand Current (0.3 sec): 25 kA
- Short Time Withstand Current (0.1 sec): 30 kA
- Assembly Arrangement: 27mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 107mm x 300mm x 200mm
- Weight: 5 kg
Key Features
- Rated current of 400A for high power applications.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Suitable for any application requiring robust busbar systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NCH Busbar Chassis 400A 6 Way 27mm 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
