Busbar Chassis 400A 72 Way | 3-Pole Top Feed | Encapsulated by NHP
Busbar chassis with 400A rated current and 3-pole top feed—ideal for industrial power distribution. Built for durability with encapsulated housing, ensuring efficient energy management in commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

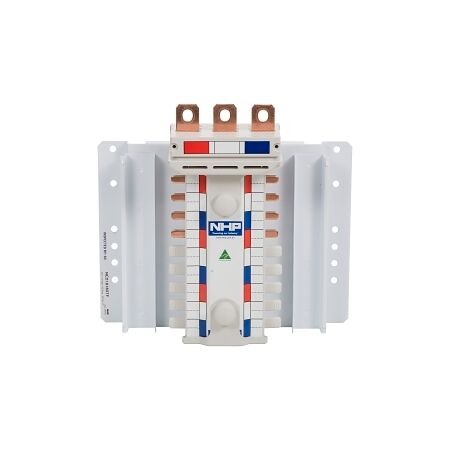

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 72 Way 3Pole Top Feed
Brand: NHP
SKU: NC472183TF
Alternatively Known As: Busbar Chassis, Power Distribution Busbar, DIN Rail Busbar
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 72
- Number of Phases Input: 3-phase
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.1 sec: 30 kA
- Short Time Withstand Current (ICW) 0.3 sec: 25 kA
- Short Time Withstand Current (ICW) 1 sec: 13 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 674mm x 82mm x 300mm
- Weight: 10 kg
Key Features
- Rated current of 400A with a 3-pole configuration.
- Designed for top feed connections.
- Encapsulated material housing for enhanced durability.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 400A 72 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial power distribution applications.
