Busbar Chassis 400A 78 Way | 3-Pole Top Feed | Encapsulated Material by NHP
Busbar chassis with 400A rated current and 78 poles—ideal for industrial and commercial power distribution. Built for high power applications, with encapsulated material housing and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

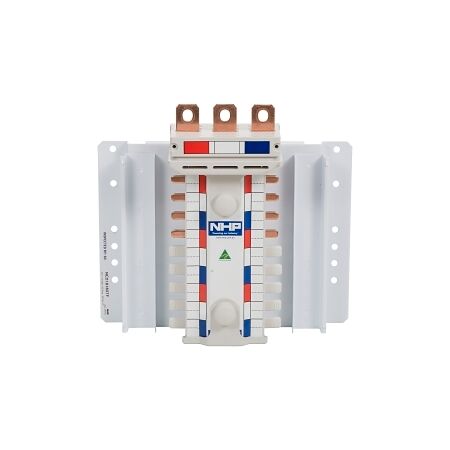

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 78 Way 3Pole Top Feed
Brand: NHP
SKU: NC478183TF
Alternatively Known As: Busbar Chassis, Power Distribution Busbar, DIN Rail Busbar
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 78
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 13 kA
- Short Time Withstand Current (0.3 sec): 25 kA
- Short Time Withstand Current (0.1 sec): 30 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 728mm x 82mm x 300mm
- Weight: 10 kg
Key Features
- 400A rated current for high power applications.
- 78 poles with 3-phase input for versatile configurations.
- Encapsulated material housing for enhanced durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 400A 78 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution needs.
Non-Returnable & Non-Cancellable
