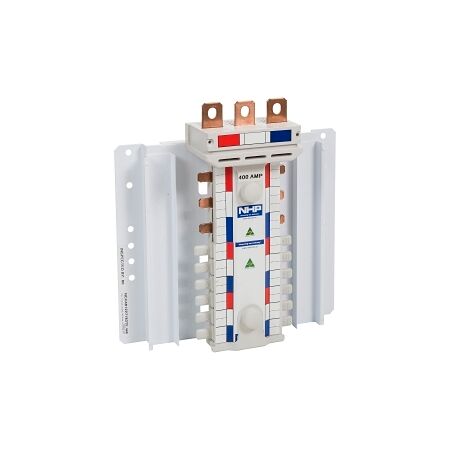

Busbar Chassis 400A Hybrid | 12 Way 27mm & 30 Way 18mm | 3-Pole Top Feed by NHP
Busbar chassis with 400A rated current and hybrid design—ideal for industrial power distribution. Built for commercial use, with 12 ways at 27mm pitch and 30 ways at 18mm pitch for efficient power handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 12 Way 27mm 30 Way 18mm 3Pole Top Feed
Brand: NHP
SKU: NCH4123027183TF
Alternatively Known As: NHP Busbar, Power Distribution Busbar, DIN Rail Busbar
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 42
- Number of Poles (18mm pitch): 30
- Number of Poles (27mm pitch): 12
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW 0.1 sec): 30 kA
- Short Time Withstand Current (ICW 0.3 sec): 25 kA
- Short Time Withstand Current (ICW 1 sec): 13 kA
- Assembly Arrangement: Hybrid 18mm and 27mm pitch
- Degree of Protection: IP20
- Dimensions (H x L x W): 458mm x 300mm x 100mm
- Weight: 5.0 kg
Key Features
- Hybrid design with 12 ways at 27mm pitch and 30 ways at 18mm pitch.
- Rated current of 400A for robust power handling.
- 3-phase input for efficient power distribution.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and control panels
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Encapsulated material housing for enhanced durability and safety.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid is available now for immediate purchase. Ideal for industrial and electrical applications.
