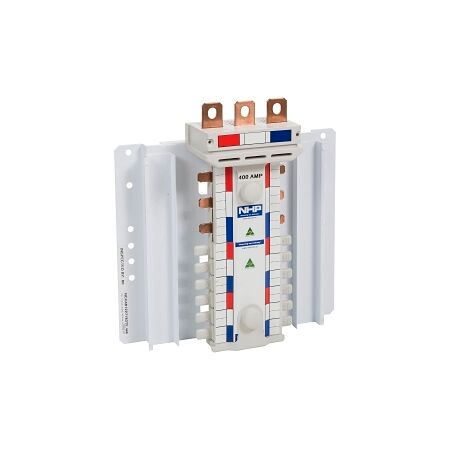

Busbar Chassis 400A Hybrid | 12 Way 27mm & 42 Way 18mm | 3-Pole Top Feed by NHP
Busbar chassis with 400A rated current and hybrid design—ideal for industrial and commercial power distribution. Built for robust electrical installations, with 12 ways at 27mm pitch and 42 ways at 18mm pitch.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 12 Way 27mm 42 Way 18mm 3Pole Top Feed
Brand: NHP
SKU: NCH4124227183TF
Alternatively Known As: NHP Busbar Chassis, 400A Busbar, Hybrid Busbar System
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 54
- Number of Poles (18mm pitch): 42
- Number of Poles (27mm pitch): 12
- Number of Phases Input: 3-phase
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW 0.1 sec): 30 kA
- Short Time Withstand Current (ICW 0.3 sec): 25 kA
- Short Time Withstand Current (ICW 1 sec): 13 kA
- Assembly Arrangement: Hybrid 18mm and 27mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 566mm x 300mm x 100mm
- Weight: 5 kg
Key Features
- Hybrid design with 12 ways at 27mm pitch and 42 ways at 18mm pitch.
- Rated current of 400A and nominal voltage of 415V.
- Short time withstand current ratings of up to 30kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Suitable for any application requiring robust busbar systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid is available now for immediate purchase, ideal for industrial and commercial power distribution applications.
