Busbar Chassis 400A Hybrid | 12 Way 27mm & 60 Way 18mm | 3-Phase Top Feed by NHP
Busbar chassis with 400A rated current and hybrid design—ideal for industrial and commercial power distribution. Built for robust applications, with 12 ways at 27mm pitch and 60 ways at 18mm pitch, featuring 3-phase input for efficient power distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

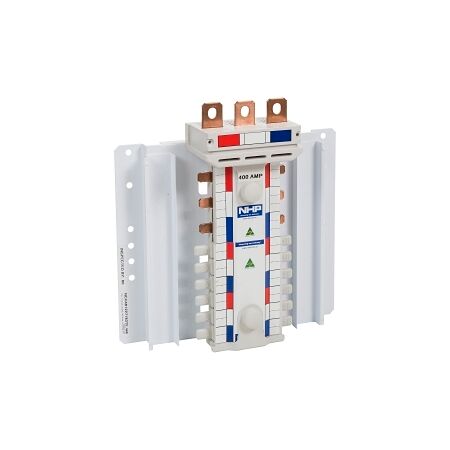

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 12 Way 27mm 60 Way 18mm 3Pole Top Feed
Brand: NHP
SKU: NCH4126027183TF
Alternatively Known As: NHP Busbar Chassis, 400A Busbar, Hybrid Busbar System
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 72
- Number of Poles (18mm Pitch): 60
- Number of Poles (27mm Pitch): 12
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW 0.1 sec): 30 kA
- Short Time Withstand Current (ICW 0.3 sec): 25 kA
- Short Time Withstand Current (ICW 1 sec): 13 kA
- Assembly Arrangement: Hybrid 18mm and 27mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 728mm x 400mm x 300mm
- Weight: 5 kg
Key Features
- 400A rated current for high power applications.
- Hybrid design with 12 ways at 27mm pitch and 60 ways at 18mm pitch.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for enhanced durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Suitable for any application requiring robust busbar systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid is available now for immediate purchase, ideal for industrial and commercial power distribution applications.
