Busbar Chassis 400A Hybrid | 12 Way 27mm & 60 Way 18mm | IP20 Rated by NHP
Busbar chassis with 400A rated current and hybrid design featuring 12 way 27mm and 60 way 18mm pitch—ideal for industrial and commercial power distribution. Built for high-demand environments, with IP20 protection and durable construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

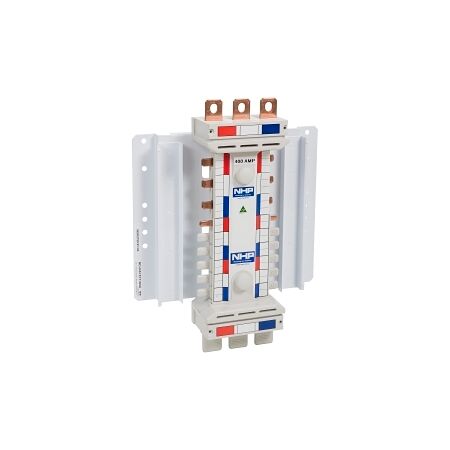

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 12 Way 27mm 60 Way 18mm 3Pole Universal
Brand: NHP
SKU: NCH4126027183U
Alternatively Known As: NHP Busbar Chassis, 400A Busbar, Hybrid Busbar System
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 72
- Number of Poles (18mm pitch): 60
- Number of Poles (27mm pitch): 12
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.1 sec): 30 kA
- Short Time Withstand Current (0.3 sec): 25 kA
- Short Time Withstand Current (1 sec): 13 kA
- Assembly Arrangement: Hybrid 18mm and 27mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 728mm x 400mm x 300mm
- Weight: 5 kg
Key Features
- Hybrid design with 18mm and 27mm pitch for versatile applications.
- Rated current of 400A suitable for high-demand environments.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Any application requiring robust busbar systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
