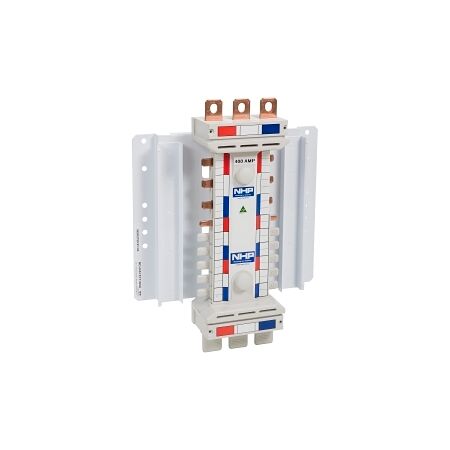

Busbar Chassis 400A Hybrid | 6 Way 27mm & 36 Way 18mm | IP20 Protection by NHP
Busbar chassis with 400A rated current and hybrid 6 way 27mm & 36 way 18mm configuration—ideal for industrial and commercial power distribution. Built for robust power handling, with IP20 protection for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 6 Way 27mm 36 Way 18mm 3Pole Universal
Brand: NHP
SKU: NCH463627183U
Alternatively Known As: NHP Busbar, Power Distribution Busbar, DIN Rail Busbar
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 42
- Number of Poles (18mm pitch): 36
- Number of Poles (27mm pitch): 6
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.1 sec): 30 kA
- Short Time Withstand Current (0.3 sec): 25 kA
- Short Time Withstand Current (1 sec): 13 kA
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 431mm x 300mm x 100mm
- Weight: 5 kg
Key Features
- 400A rated current for robust power handling.
- Hybrid assembly arrangement with 18mm and 27mm pitch.
- IP20 degree of protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Suitable for various electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid is available now for immediate purchase, ideal for industrial and commercial power distribution systems.
