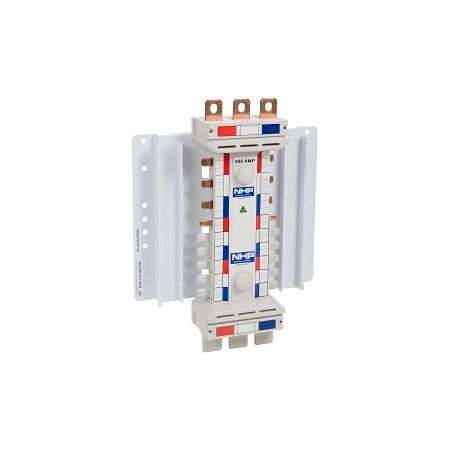

Busbar Chassis 400A Hybrid | 6 Way 27mm & 48 Way 18mm | 3-Phase Input by NHP

BRAND: NHP
SKU: NCH464827183U
$1,240.90 List price: $1,647.80
+ −
30 Days Return Delivery Options
Busbar chassis with 400A rated current and hybrid 6 way 27mm & 48 way 18mm pitch—ideal for industrial and commercial power distribution. Built for robust electrical configurations, with IP20 protection for indoor use.

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 6 Way 27mm 48 Way 18mm 3Pole Universal

Brand: NHP

SKU: NCH464827183U

Alternatively Known As: NHP Busbar Chassis, DIN-T Busbar, Power Distribution Busbar

Technical Specifications
  • Rated Current: 400 A
  • Number of Poles: 54
  • Number of Poles (18mm pitch): 48
  • Number of Poles (27mm pitch): 6
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (0.1 sec): 30 kA
  • Short Time Withstand Current (0.3 sec): 25 kA
  • Short Time Withstand Current (1 sec): 13 kA
  • Assembly Arrangement: Hybrid 18mm and 27mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 539mm x 300mm x 100mm
  • Weight: 10 kg
Key Features
  • 400A rated current for high power applications.
  • Hybrid assembly arrangement with 18mm and 27mm pitch.
  • 3-phase input for versatile electrical configurations.
  • IP20 degree of protection for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical installations in large buildings
  • General: Any application requiring robust busbar systems
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Durable encapsulated material reduces waste and enhances longevity.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

NCH464827183U-AU-Chassis-NCH-DINT-400A-3-Pole-Universal-Feed-Datasheet.pdf (NCH464827183U-AU-Chassis-NCH-DINT-400A-3-Pole-Universal-Feed-Datasheet.pdf, 246 Kb) [Download]
