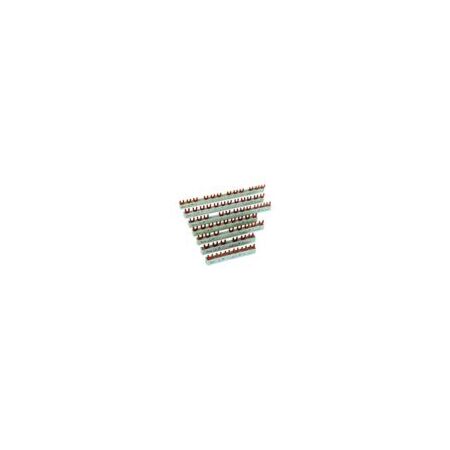

Busbar EVG-16/3PHAS/12MODUL | Insulated | 80A Current | 3-Phase Design | Eaton
Busbar EVG-16/3PHAS/12MODUL with insulated design and rated uninterrupted current of 80A—ideal for electrical distribution systems. Built for safe connections in 3-phase setups, with compliance to AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Busbar EVG-16/3PHAS/12MODUL | Insulated | 80A Current | 3-Phase Design | Eaton
Brand: Eaton
SKU: Y7-291472
Alternatively Known As: Eaton xPole Busbar, EVG Busbar 3-Phase, 12 Module Busbar, 80A Busbar for Circuit Breakers
Technical Specifications
- Product Name: Eaton Moeller series busbar
- Catalog Number: 291472
- EAN: 4015082914721
- Product Length/Depth: 33 mm
- Product Height: 10.4 mm
- Product Width: 210 mm
- Product Weight: 0.12 kg
- Compliances: RoHS conform
- Used with: Busbar EVG
- Type: Busbar EVG
- Features: Insulated
- Accessory/spare part type: Busbar for miniature circuit breaker, combined residual current/power circuit breaker, residual current circuit breakers
- Electric connection type: Fork
- Rated surge voltage: 4 KV
- Rated uninterrupted current (Iu): 80 A
- Suitable for number of devices: 4
- Number of poles: Three-pole
- Color: Other
- Rated short-time withstand current (Icw): 0 kA
- Cross section: 16 mm²
- Number of modular spacings: 12
- Number of phases: 3
- Pitch dimensions: 0 mm
- Rated operational voltage (Ue) - max: 415 V
- Rated conditional short-circuit current (Iq): 25 kA
- Functions: Busbar
- Suitable for: 4 devices
- Dimensions (H x L x W): 10.4mm x 33mm x 210mm
- Weight: 0.12 kg
Key Features
- Insulated busbar for safety
- Three-pole design suitable for 3-phase systems
- Rated uninterrupted current of 80A
- Rated operational voltage up to 415V
- Rated conditional short-circuit current of 25kA
- Suitable for 4 devices
- Electric connection type: Fork
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical distribution systems
- Busbar connections for miniature circuit breakers
- Combined residual current/power circuit breaker setups
- Residual current circuit breaker installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable insulated design reduces risk of electrical faults and waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xPole EVG-16/3PHAS/12MODUL busbar is available for immediate purchase, ideal for electrical distribution and circuit breaker busbar applications.
