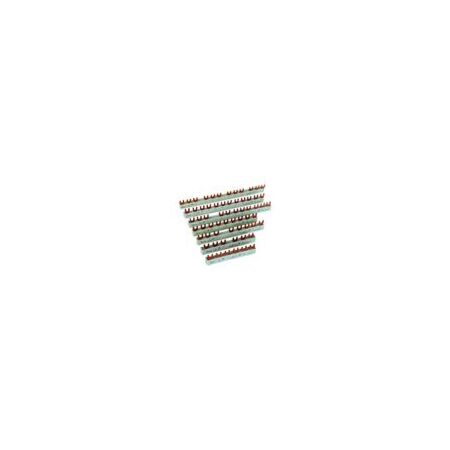

Busbar EVG 16mm² 4-Phase | 80A Current | 25kA Short-Circuit | Eaton
Busbar EVG with 16mm² cross-section and 4-phase design—ideal for electrical distribution panels. Built for safety with insulated construction and fork type electric connection, supporting up to 28 devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Busbar EVG 16mm² 4-Phase | 80A Current | 25kA Short-Circuit | Eaton
Brand: Eaton
SKU: Y7-291476
Alternatively Known As: 4-Phase Busbar, 16mm² Busbar, Modular Busbar, Circuit Breaker Busbar, xPole Busbar
Technical Specifications
- Product Type: Busbar EVG
- Cross Section: 16 mm²
- Number of Phases: 4
- Number of Poles: Four-pole
- Number of Modular Spacings: 12
- Rated Operational Voltage (Ue) Max: 415 V
- Rated Uninterrupted Current (Iu): 80 A
- Rated Conditional Short-Circuit Current (Iq): 25 kA
- Rated Surge Voltage: 4 kV
- Electric Connection Type: Fork
- Suitable for Number of Devices: 28
- Functions: Busbar
- Color: Other
- Pitch Dimensions: 0 mm
- Dimensions (H x L x W): 13.3mm x 33mm x 210mm
- Weight: 0.14 kg
Key Features
- Insulated busbar for safety
- Fork type electric connection
- Four-pole design suitable for 4 phases
- Supports up to 28 devices
- Rated operational voltage up to 415 V
- Rated uninterrupted current of 80 A
- Rated conditional short-circuit current of 25 kA
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical distribution panels
- Miniature circuit breaker busbar connections
- Residual current circuit breaker busbar connections
- Combined residual current/power circuit breaker busbar connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable insulated design reduces risk of electrical faults and waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xPole 4-phase 16qmm busbar with 12 modular spacings is available now for immediate purchase. Ideal for electrical distribution and circuit breaker busbar applications.
