Trade Discount 17%

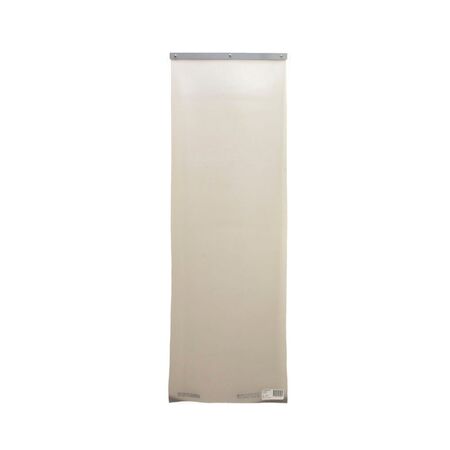

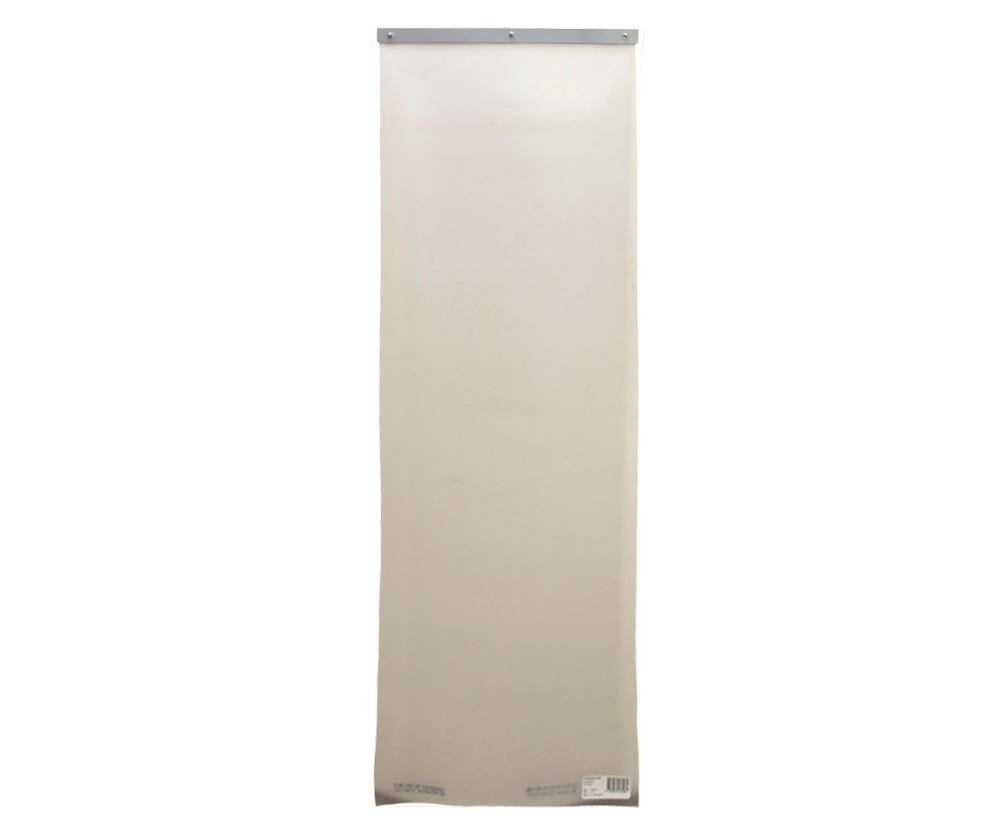

Busbar Mat 300 x 1000mm with Magnet | Class 0 Rated for 1000V | Flexible PVC | @Each of 1 | by Cabac
The Busbar Mat 300 x 1000mm with Magnet is designed for electrical safety, featuring Class 0 rating for 1000 volts and made from flexible PVC. Ideal for electricians working near live parts, this mat protects against accidental contact and is equipped with magnets for secure attachment to switchboards, ensuring safety during maintenance and repair work.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Busbar Mat 300 x 1000mm with Magnet | Class 0 Rated for 1000V | Flexible PVC | @Each of 1 | by Cabac
Brand: Cabac
SKU: 01006300X1000MAG
Alternatively Known As: Electrical insulating mat, Busbar safety mat, Live parts insulating mat, Electrical safety mat with magnets
Technical Specifications
- Class 0 rated for 1000 Volts
- Complies with IEC 61112 Live Working - Electrical Insulating Blankets
- Material: Flexible insulating PVC
- Colour: Transparent
- Magnets secured with stainless steel dome nut and washer
- Dimensions: 300mm x 1000mm
- Dimensions (H x L x W): 3mm x 1000mm x 300mm
- Weight: 1.5 kg
Key Features
- Protects against accidental and direct contact with live parts
- Equipped with magnets for secure attachment to switchboards
- Flexible PVC strip prevents magnets from tearing through the mat
- Class 0 rated for 1000 Volts
- Transparent for easy visibility of underlying components
Professional Installation Requirements
- No professional installation required; however, users should be trained in electrical safety procedures when using the busbar mat.
Applications
- Electrical maintenance and repair work on switchboards
- Protection for electricians working near live electrical parts
- Industrial and commercial electrical safety applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reusable safety mat reduces need for disposable protective materials
- Durable construction extends product life, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac Busbar Mat 300 x 1000mm with Magnet is available now for immediate purchase. Ideal for electrical safety in industrial and commercial switchboard maintenance.
