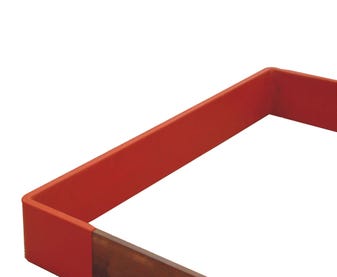

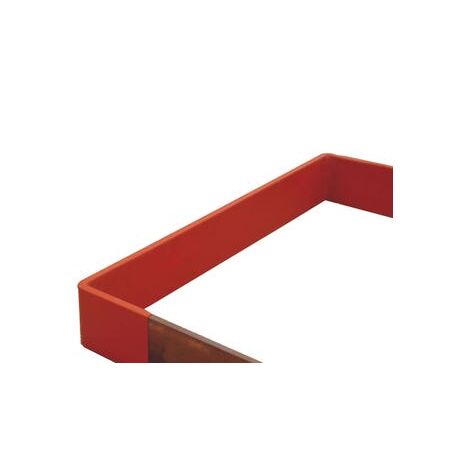

Busbar MV Insulation Tubing 30/12mm | Adhesive Lined | High Tracking Resistance | Flame Retardant by Cabac
Cabac Busbar MV Insulation Tubing 30/12mm is a medium wall heatshrink tubing designed for up to 36kV applications, improving insulation and reducing busbar clearance distances with high tracking resistance and durable flame retardant material.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Busbar Mv Insulation Tubing 30/12mm
Brand: Cabac
SKU: BBMV30-12
Alternatively Known As: Medium Wall Heatshrink Tubing, MV Busbar Insulation Sleeve, Heat Shrink Busbar Tubing
Technical Specifications
- Medium wall heatshrink tubing suitable for up to 36kV
- Adhesive lined for improved sealing
- High tracking resistance
- Flame retardant and non-halogen based
- Durable against UV exposure and solvents
- Mechanically strong
- Dimensions (H x L x W): 12mm x 1000mm x 30mm
- Weight: 0.5 kg
Key Features
- Adhesive lined for improved sealing
- High tracking resistance up to 36kV
- Flame retardant and non-halogen based material
- Extremely durable against UV and solvents
- Mechanically strong
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical safety standards.
Applications
- Electrical insulation for medium voltage busbars
- Improving insulation and reducing busbar clearance distances in electrical installations
- Suitable for rectangular or circular busbars in industrial and commercial electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-halogen based material reduces environmental impact in case of fire
- Durable UV and solvent resistance extends product life, reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac Busbar MV Insulation Tubing 30/12mm is available for immediate purchase, ideal for medium voltage electrical insulation applications.
