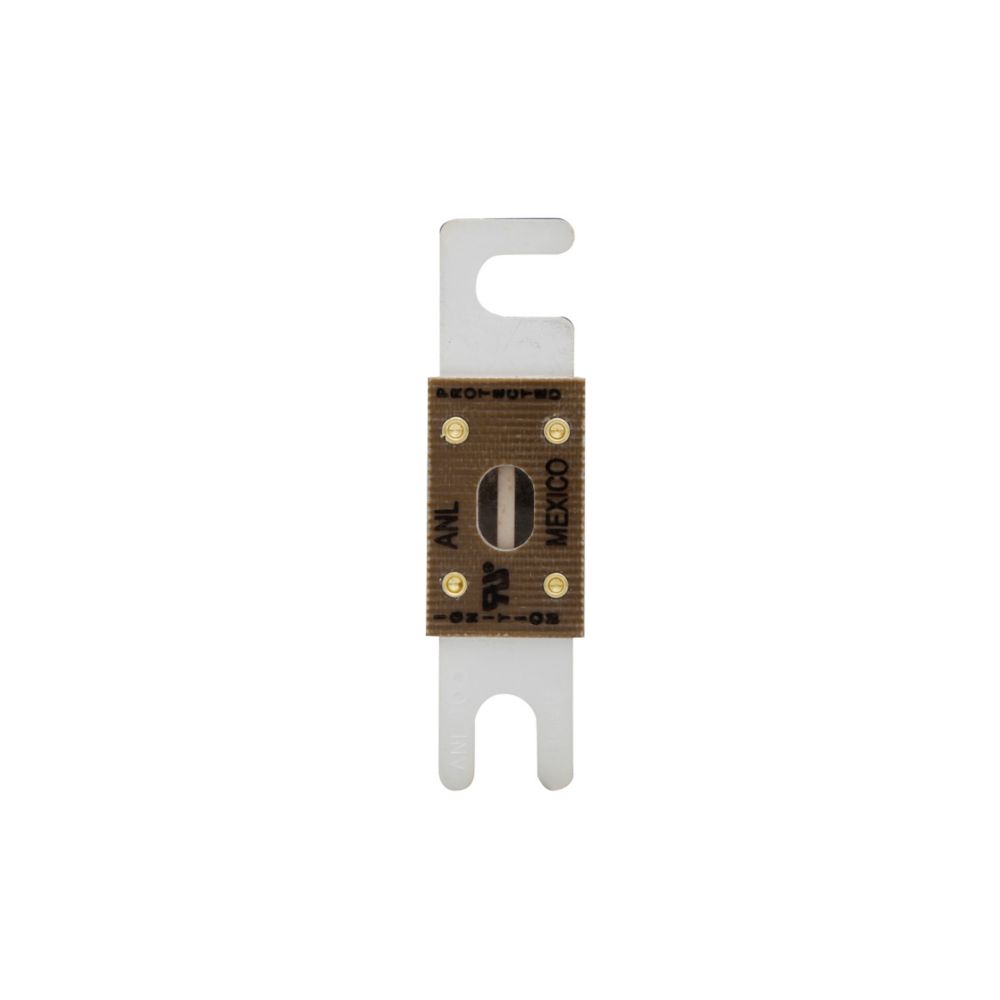

Buss Aircraft Limiter ANL-675 | 675A Amperage Rating | 6 kAIC Interrupt Rating | Blade End Connection | by Eaton
The Buss Aircraft Limiter ANL-675 is designed for high current protection with a robust 675A amperage rating and an interrupt rating of 6 kAIC at 32 Vac. Ideal for automotive and aircraft electrical systems, this non-indicating fuse features a secure blade end connection and a compact design for easy installation. Perfect for ensuring safety in industrial machinery and battery systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Buss Aircraft Limiter ANL-675 | 675A Amperage Rating | 6 kAIC Interrupt Rating | Blade End Connection | by Eaton
Brand: Eaton
SKU: ANL-675
Alternatively Known As: ANL Fuse 675A, Bussmann ANL-675, Aircraft Circuit Limiter Fuse, Eaton ANL Fuse
Technical Specifications
- Amperage Rating: 675A
- Interrupt Rating: 6 kAIC at 32 Vac, 2.7 kAIC at 80 Vdc
- Voltage Rating: 32 Vac, 80 Vdc
- Connection Type: Blade end x blade end
- Mounting Method: Stud
- Fuse Indicator: Non-indicating
- Small footprint design
- Dimensions (H x L x W): 41mm x 86mm x 24mm
- Weight: 0.14 kg
Key Features
- 675 Ampere rating for high current protection
- Interrupt rating of 6 kAIC at 32 Vac and 2.7 kAIC at 80 Vdc
- Blade end to blade end connection for secure fitting
- Stud mounting method for easy installation
- Non-indicating fuse type with a small footprint
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Automotive and aircraft electrical protection
- Industrial machinery circuit protection
- Battery and DC power system protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances in manufacturing
Warranty Information
No warranty applicable as per manufacturer information.
Available Now
The Eaton Bussmann ANL-675 circuit limiter is available for immediate purchase, ideal for electrical protection in aircraft and industrial applications.
