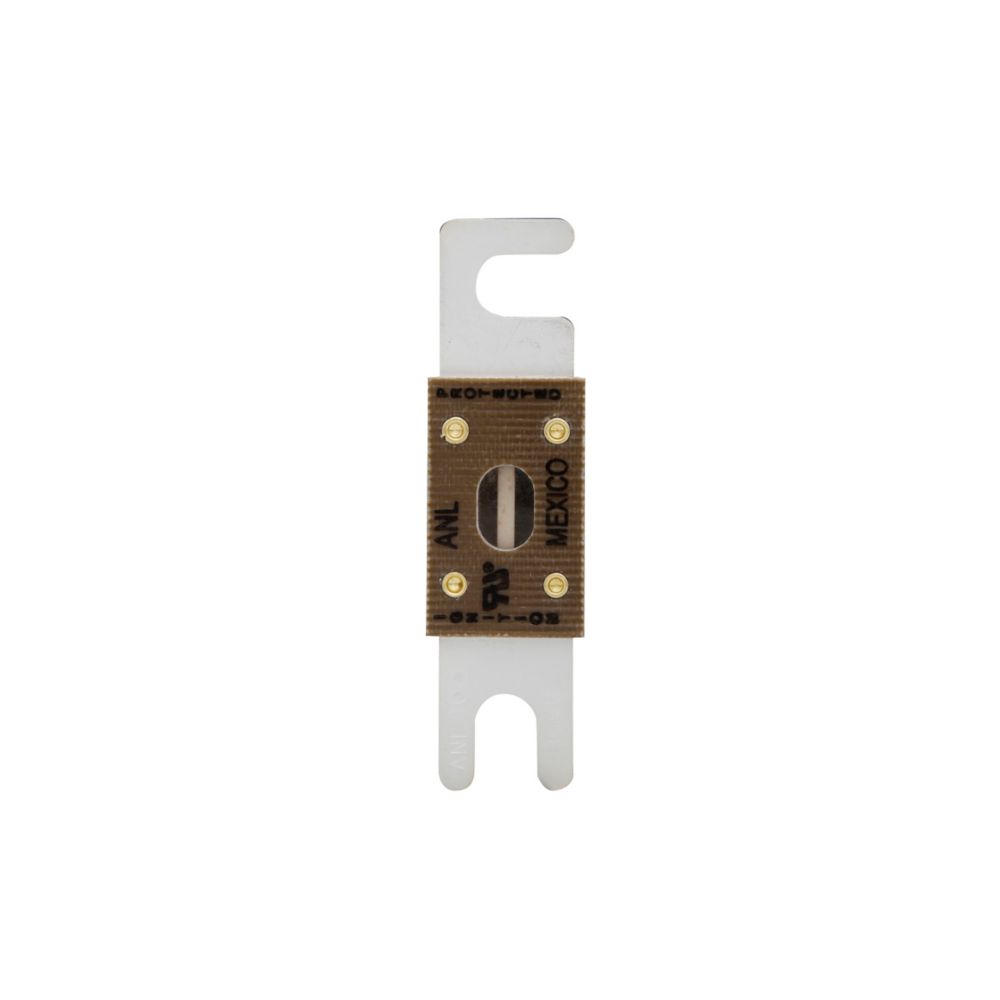

Buss Aircraft Limiter ANL-750 | 750A Rating | 6 kAIC Interrupt | Blade End Connection | @Each by Eaton
The Buss Aircraft Limiter ANL-750 is designed for high current protection in aircraft electrical systems, featuring a robust 750A rating and an interrupt rating of 6 kAIC at 32 Vac. Ideal for industrial and commercial circuits, this non-indicating fuse ensures reliable performance in demanding environments, making it essential for safe electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Buss Aircraft Limiter ANL-750 | 750A Rating | 6 kAIC Interrupt | Blade End Connection | @Each by Eaton
Brand: Eaton
SKU: ANL-750
Alternatively Known As: ANL-750 Fuse, Aircraft Circuit Limiter, Bussmann ANL Fuse, Eaton ANL-750
Technical Specifications
- Amperage Rating: 750 A
- Interrupt Rating: 6 kAIC at 32 Vac, 2.7 kAIC at 80 Vdc
- Voltage Rating: 32 Vac, 80 Vdc
- Connection Type: Blade end x blade end
- Mounting Method: Stud
- Fuse Indicator: Non-indicating
- Dimensions (H x L x W): 41mm x 86mm x 24mm
- Weight: 0.14 kg
Key Features
- 750 Ampere current rating
- Interrupt rating of 2.7 kAIC at 80 Vdc and 6 kAIC at 32 Vac
- Blade end to blade end connection
- Stud mounting method
- Non-indicating fuse type
- Compact small footprint design
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with high current electrical protection devices to ensure safety and compliance.
Applications
- Aircraft electrical systems requiring high current protection
- Industrial and commercial electrical circuits with 750A rating
- Protection of DC and AC circuits in transportation and heavy equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
Warranty Information
No warranty applicable.
Available Now
The Eaton Bussmann ANL-750 Aircraft Circuit Limiter is available for immediate purchase, ideal for aircraft and industrial electrical protection applications.
