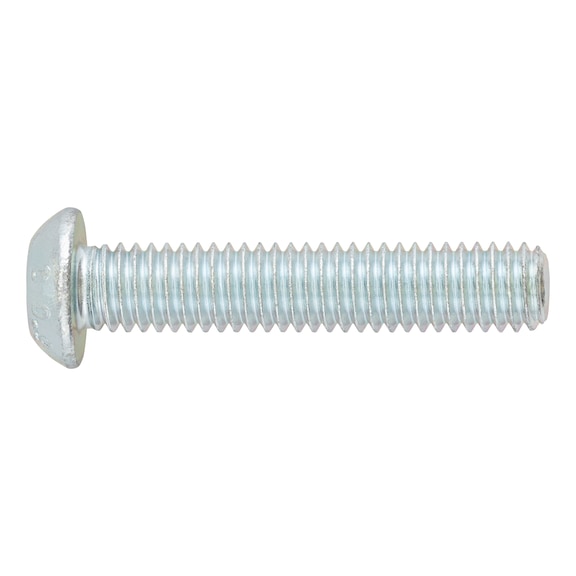

Button Head Hex Socket Screw | ISO 7380-1 | Zinc Plated Blue Passivated | M3 Thread | by Wurth
Button Head Hex Socket Screw designed to meet ISO 7380-1 standards, featuring a durable zinc plating with blue passivation for enhanced corrosion resistance. Ideal for general mechanical fastening and electronics assembly, this screw ensures secure fastening with its hexagon socket drive and M3 thread, making it perfect for light machinery and equipment applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Button Head Hex Socket Screw | ISO 7380-1 | Zinc Plated Blue Passivated | M3 Thread | by Wurth
Brand: Wurth
SKU: 6001310
Alternatively Known As: Button Head Hex Socket Screw, ISO 7380-1 Screw, Zinc Plated Hexagon Socket Screw
Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 10 mm
- Head diameter (dk): 5.7 mm
- Head height (k1): 1.65 mm
- Standards: ISO 7380-1
- Material: Steel
- Property class: 010.9
- Surface: Zinc plated with blue passivation
- Head type: Button head
- Drive type: Hexagon socket
- Internal drive: HS2
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.65mm x 10mm x 5.7mm
- Weight: 0.005 kg
Key Features
- Steel material with property class 010.9 for strength
- Zinc plated with blue passivation for corrosion resistance
- Button head with hexagon socket drive for secure fastening
- Metric thread type with standard metric thread form
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and load application.
Applications
- General mechanical fastening requiring limited load capacity
- Electronics assembly with metric thread requirements
- Light machinery and equipment assembly
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical fastening applications
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating with passivation enhances durability reducing replacement frequency
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for mechanical and electrical fastening applications requiring limited load capacity.
