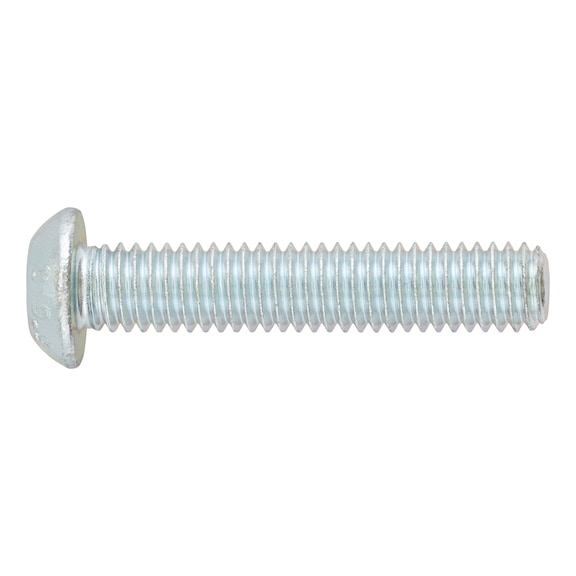

Button Head Hex Socket Screw M3 | Zinc Plated Blue Passivated | ISO 7380-1 Compliant | by Wurth

BRAND: Wurth
SKU: 600138
$3.70 List price: $4.60
+ −
30 Days Return Delivery Options
Button Head Hex Socket Screw M3 is designed for reliable fastening in mechanical assemblies and precision equipment. With a zinc plated blue passivated surface, it offers excellent corrosion resistance and complies with ISO 7380-1 standards. Ideal for applications requiring limited load screws, this RoHS-compliant screw ensures safety and durability in various environments.

Product Name/Title: Button Head Hex Socket Screw M3 | Zinc Plated Blue Passivated | ISO 7380-1 Compliant | by Wurth

Brand: Wurth

SKU: 600138

Alternatively Known As: Button Head Hex Socket Screw, ISO 7380-1 Screw, Zinc Plated Hexagon Socket Screw, M3 Button Head Screw

Technical Specifications
  • Thread type x nominal diameter: M3
  • Length: 8 mm
  • Head diameter: 5.7 mm
  • Head height: 1.65 mm
  • Standards: ISO 7380-1
  • Material: Steel
  • Property class: 010.9
  • Surface: Zinc plated blue passivated
  • Head type: Button head
  • Drive type: Hexagon socket
  • Internal drive: HS2
  • Thread form: Standard metric thread
  • Product class: A
  • RoHS-compliant: Yes
  • Dimensions (H x L x W): 1.65mm x 8mm x 5.7mm
  • Weight: 0.005 kg
Key Features
  • Button head with hexagon socket drive
  • Steel material with property class 010.9 for strength
  • Zinc plated blue passivated surface for corrosion resistance
  • Metric thread type (M3 x 8 mm)
  • RoHS-compliant
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure correct torque and load application as per DIN EN ISO 898-1 standards.
Applications
  • Mechanical assemblies requiring limited load screws
  • Electronics and precision equipment fastening
  • General purpose fastening where button head screws are suitable
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical fastening applications
Environmental Benefits
  • RoHS-compliant ensuring reduced hazardous substances
  • Zinc plating provides corrosion resistance extending product life
Warranty Information

Warranty against manufacturing defects as per Wurth standard terms and conditions.

Available Now

Available for immediate purchase, ideal for mechanical and electrical fastening applications requiring limited load screws.
