C-Bus Controller 250V 10A Legrand
Legrand C-Bus controller provides 4-position AC speed control with a 10A rated current and 250V nominal voltage. It features IP20 protection, IK04 impact strength and a flush-mounted design. Dimensions (H x L x W): 45mm x 34mm x 45mm, with a weight of 0.1 kg. See the technical details below for connection and installation requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- AC speed control with 4 positions
- Rated current: 10 A
- Nominal voltage: 250 V
- Material: Thermoplastic, halogen free
- Mounting method: Flush-mounted
- Degree of protection: IP20
- Impact strength: IK04
- Operating temperature: -5 to 35 °C
- Storage temperature: -10 to 70 °C
- Connection type: Screwed terminal
- Terminal capacity: 1.5-2.5 mm²
- Cable nature: Flexible or rigid
- Dimensions (H x L x W): 45mm x 34mm x 45mm
- Weight: 0.1 kg
Key Features
- AC speed control with 4 positions for precise fan speed adjustment
- Flush-mounted design for seamless integration
- Turn button operation for easy use
- White glossy thermoplastic material, halogen free
- Rated current of 10 A and nominal voltage of 250 V
- Screwed terminal connection suitable for flexible or rigid cables
- IP20 degree of protection and IK04 impact strength
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential: Ventilation and fan speed control in homes
- Commercial: Fan speed regulation in offices and commercial buildings
- General: Suitable for controlling AC fan speeds in various electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient fan speed control to reduce energy consumption
- Halogen-free materials contribute to safer environmental impact
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now

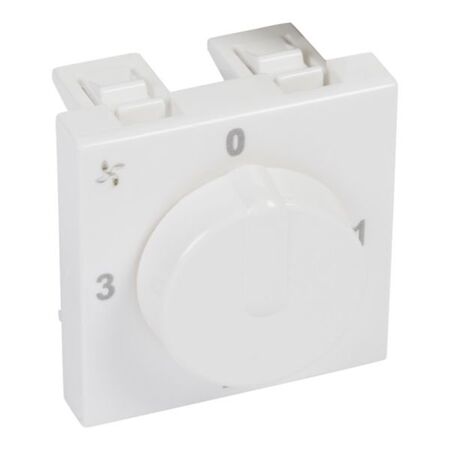

The Legrand Arteor™ Fan Controller AC Speed Control 4 Positions 2 Modules White is available now for immediate purchase. Ideal for residential and commercial ventilation control applications.
FAQ
Q: What is the rated current and nominal voltage of the controller?
A: The controller has a rated current of 10 A and a nominal voltage of 250 V.
Q: What type of speed control does the controller provide?
A: It provides AC speed control with 4 positions for fan speed adjustment.
