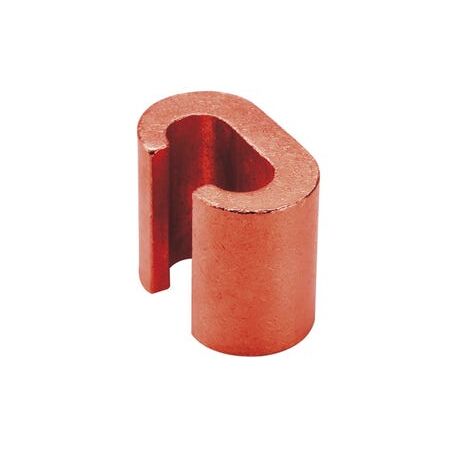

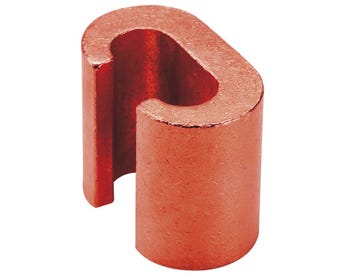

C Connector 110-125mm² | 99.95% Pure Copper | Bonding & Earthing | Heat Cycle Tested by Cabac
The Cabac C Connector 110-125mm² is designed for joining and tapping copper conductors, ideal for bonding earthing conductors and earth grids with high conductivity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C Connector 110-125mm2
Brand: Cabac
SKU: CACC120
Alternatively Known As: Copper C Connector, Earthing C Connector, Bonding C Connector, Copper Conductor Connector
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Operating Temperature: -55°C to 155°C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling: Interchangeable between CABAC and Burndy
- Dimensions (H x L x W): 40mm x 80mm x 120mm
- Weight: 0.2 kg
Key Features
- Made from 99.95% pure copper
- Suitable for bonding earthing conductors
- Heat cycle tested to IEEE 837 clause 8
- Tooling interchangeable between CABAC and Burndy
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper bonding and compliance with electrical standards.
Applications
- Joining and tapping copper conductors
- Bonding connections to earth grids and earthing conductors
- Tapping off earth and aerial conductors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High purity copper ensures excellent conductivity reducing energy loss
- Durable material reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac C Connector 110-125mm² is available now for immediate purchase. Ideal for electrical earthing and bonding applications in residential, commercial, and industrial settings.
