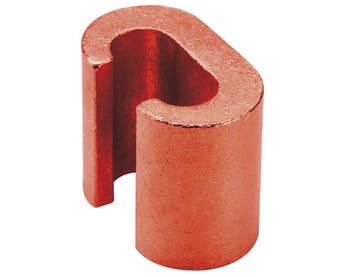

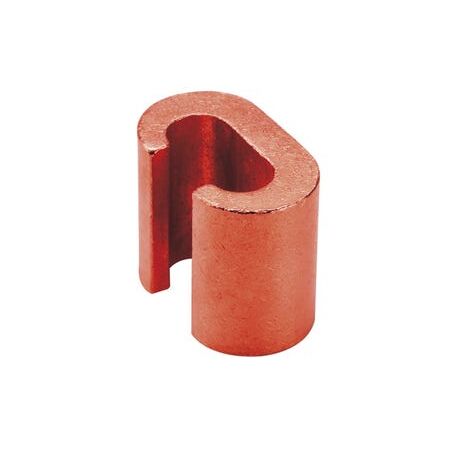

C Connector 16-25mm2 | 99.95% Pure Copper | Bonding & Earthing | Heat Cycle Tested by Cabac
The Cabac C Connector 16-25mm2 is designed for joining and tapping copper conductors, ideal for bonding earth grids and earthing conductors with high conductivity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C Connector 16-25mm2
Brand: Cabac
SKU: CACC25
Alternatively Known As: Copper C Connector, Earthing C Connector, Bonding Connector 16-25mm2
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Operating Temperature: -55°C to 155°C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling: Interchangeable between CABAC and Burndy
- Dimensions (H x L x W): 20mm x 80mm x 50mm
- Weight: 0.05 kg
Key Features
- Made from 99.95% pure copper
- Suitable for bonding earthing conductors
- Heat cycle tested to IEEE 837 clause 8
- Tooling interchangeable between CABAC and Burndy
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper bonding and compliance with electrical standards.
Applications
- Joining and tapping copper conductors
- Bonding connections to earth grids and earthing conductors
- Tapping off earth and aerial conductors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High purity copper ensures excellent conductivity reducing energy loss
- Durable material reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac C Connector 16-25mm2 is available now for immediate purchase. Ideal for electrical earthing and bonding applications in residential, commercial, and industrial settings.
