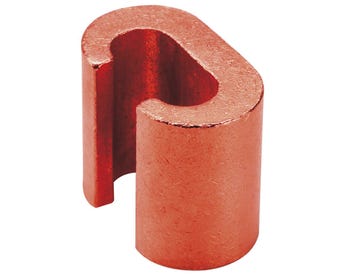

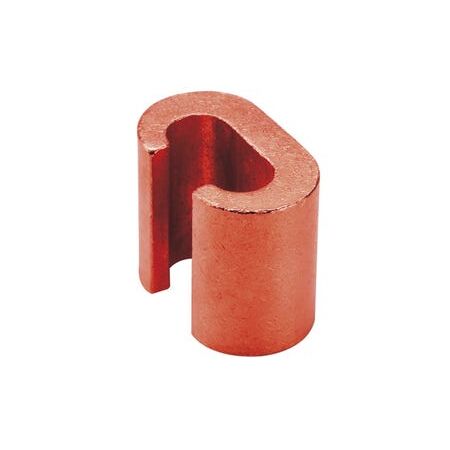

C-Connector 50-70mm2 | 99.95% Pure Copper | Bonding & Tapping | Heat Cycle Tested by Cabac
The Cabac CCon.50-70mm2 C-Connector is designed for joining and tapping copper conductors, ideal for earthing and bonding applications with high conductivity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Operating Temperature: -55°C to 155°C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling: Interchangeable between CABAC and Burndy
- Dimensions (H x L x W): 20mm x 50mm x 70mm
- Weight: 0.1 kg
Key Features
- Made from 99.95% pure copper
- Suitable for bonding earthing conductors
- Heat cycle tested to IEEE 837 clause 8
- Tooling interchangeable between CABAC and Burndy
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper bonding and compliance with electrical standards.
Applications
- Joining and tapping copper conductors
- Bonding connections to earth grids and earthing conductors
- Tapping off earth and aerial conductors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from high purity copper which is recyclable
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for details.
Available Now
The Cabac CCon.50-70mm2 Run/Tap C-Connector is available now for immediate purchase. Ideal for electrical earthing and bonding applications.
