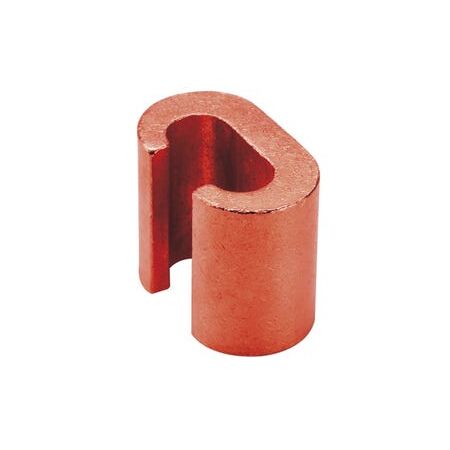

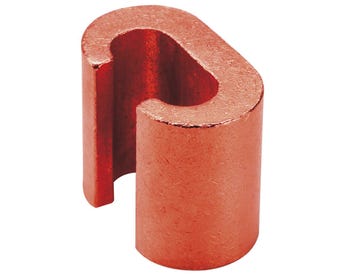

C Connector 70-95mm2 | 99.95% Pure Copper | Heat Cycle Tested | Interchangeable Tooling by Cabac
The Cabac C Connector 70-95mm2 is designed for joining and tapping copper conductors, ideal for bonding earth grids and earthing conductors with high conductivity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C Con.70-95mm2 run/tap
Brand: Cabac
SKU: CACC95
Alternatively Known As: C-Connector 70-95mm, Copper C Connector, Earth Bonding Connector, Earthing Tap Connector
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Operating Temperature: -55°C to 155°C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling: Interchangeable between CABAC and Burndy
- Dimensions (H x L x W): 30mm x 50mm x 100mm
- Weight: 0.1 kg
Key Features
- Made from 99.95% pure copper
- Suitable for bonding earthing conductors
- Heat cycle tested to IEEE 837 clause 8
- Tooling interchangeable between CABAC and Burndy
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper bonding and compliance with electrical standards.
Applications
- Joining and tapping copper conductors
- Bonding connections to earth grids and earthing conductors
- Tapping off earth and aerial conductors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from high purity copper which is recyclable
- Durable material reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for details.
Available Now
The Cabac C Connector 70-95mm2 is available now for immediate purchase. Ideal for electrical bonding and earthing applications in residential, commercial, and industrial settings.
