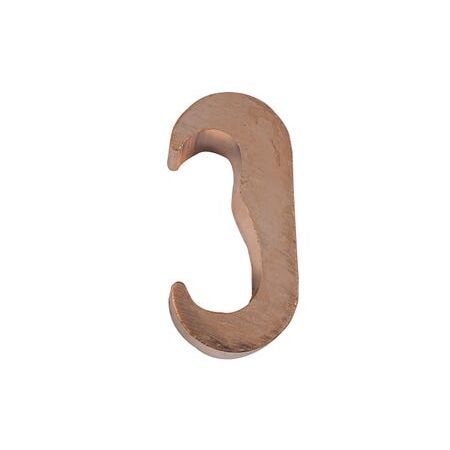

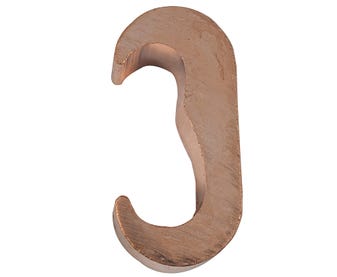

C Connector Wide Jaw for 10-35mm Copper Conductors | Heavy Duty & Corrosion Resistant | Direct Burial by Cabac
The Cabac C Connector Wide Jaw 10-35mm is a heavy duty copper connector designed for joining and tapping copper conductors in earthing and bonding applications, offering corrosion resistance and suitability for direct burial.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C Connector Wide Jaw 10-35mm
Brand: Cabac
SKU: CACD35
Alternatively Known As: Copper C Connector, Wide Jaw Earth Connector, Earthing C Connector, Copper Earth Connector 10-35mm
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Operating Temperature: -55°C to 155°C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling interchangeable with CABAC and Burndy
- Conformant Standard: International Standard (Heat Cycling Test) ESI 43/92
- Dimensions (H x L x W): 20mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Heavy duty wide jaw design suitable for 10-35mm copper conductors
- Made from 99.95% pure copper for excellent conductivity
- Corrosion resistant and suitable for direct burial
- Tested to IEEE 837 standard
- Tooling interchangeable with CABAC and Burndy
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper connection and compliance with electrical standards.
Applications
- Joining and tapping copper conductors in electrical earthing networks
- Connecting 16, 25, and 35mm conductors in distribution earth situations
- Connecting earth grids for corrosion-resistant and direct burial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from highly recyclable 99.95% pure copper
- Corrosion resistance extends product life reducing waste
- Suitable for direct burial minimizing environmental disturbance
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac C Connector Wide Jaw 10-35mm is available now for immediate purchase. Ideal for electrical earthing and bonding applications in residential, commercial, and industrial settings.
