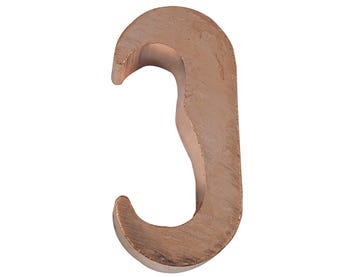

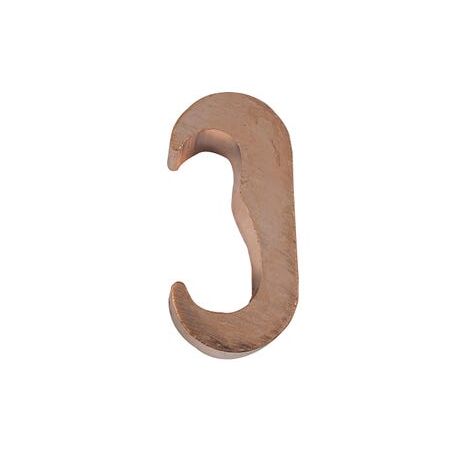

C Connector Wide Jaw 150-240mm | Heavy Duty Copper | Corrosion Resistant | Direct Burial by Cabac
The Cabac C Connector Wide Jaw 150-240mm is a heavy duty copper connector designed for joining and tapping conductors in earthing and bonding applications, offering corrosion resistance and suitability for direct burial.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C Connector Wide Jaw 150-240mm
Brand: Cabac
SKU: CACD240
Alternatively Known As: Wide Jaw C Connector, Copper Earthing Connector, Heavy Duty C Connector, Earth Grid Connector
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Operating Temperature: -55°C to 155°C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling interchangeable with CABAC and Burndy
- Conformant to International Standard (Heat Cycling Test) ESI 43/92
- Dimensions (H x L x W): 50mm x 150mm x 240mm
- Weight: 0.3 kg
Key Features
- Heavy duty wide jaw design for secure conductor connections
- Corrosion resistant and suitable for direct burial
- Made from 99.95% pure copper for excellent conductivity
- Tested to IEEE 837, clause 8 for reliability
- Tooling interchangeable with CABAC and Burndy
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper earthing connections.
Applications
- Joining and tapping copper conductors in electrical earthing networks
- Connecting earth grids in distribution earth situations
- Suitable for direct burial in earthing systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- High conductivity reduces energy loss in electrical systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac C Connector Wide Jaw 150-240mm is available now for immediate purchase. Ideal for electrical earthing and bonding applications in residential, commercial, and industrial settings.
