C-slot Cylinder Position Sensor | 0-50mm Detection Zone | 2 x PNP Outputs | IP67 Rated | by SICK
The C-slot Cylinder Position Sensor is designed for precise cylinder position detection in industrial automation, featuring a detection zone from 0 mm to 50 mm and two PNP switching outputs. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and factory equipment monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

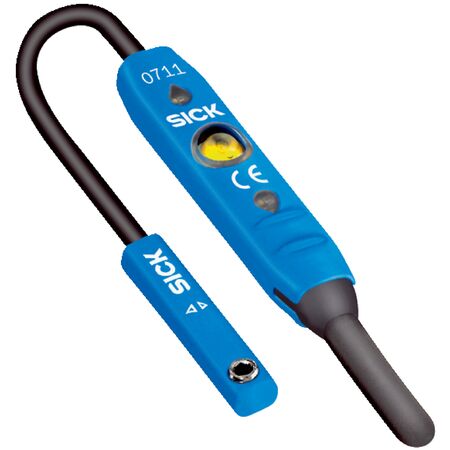

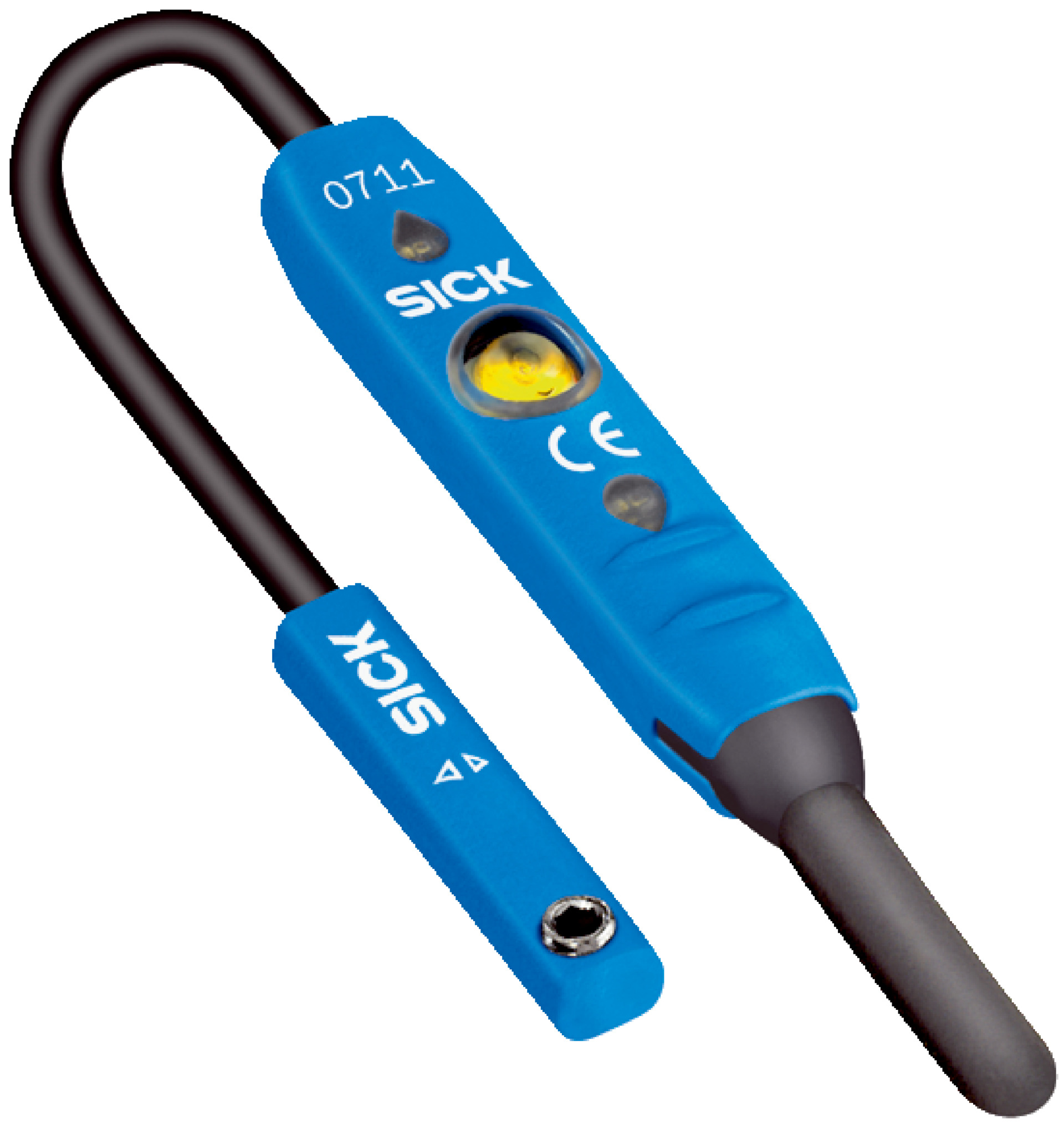

Product Name/Title: C-slot Cylinder Position Sensor | 0-50mm Detection Zone | 2 x PNP Outputs | IP67 Rated | by SICK
Brand: SICK
SKU: 1042244
Alternatively Known As: Cylinder Position Sensor, C-slot Cylinder Sensor, PNP Cylinder Sensor, Festo Compatible Cylinder Sensor
Technical Specifications
- Cylinder type: C-slot
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP, 2 x normally open contacts
- Electrical wiring: DC 4-wire
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 20 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typically 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Teach-in function: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 4-wire, 0.1 m length
- Cable diameter: Ø 2.3 mm
- Housing material: Plastic
- Cable material: PUR
- Dimensions (H x L x W): 20mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with Festo cylinders
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for easy switching point adjustment
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for cylinder position detection
- Manufacturing process control
- Factory equipment monitoring
- Pneumatic cylinder sensing with Festo compatibility
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption (typ. 20 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MZ2Q-CFSPSKQ0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder detection applications.
