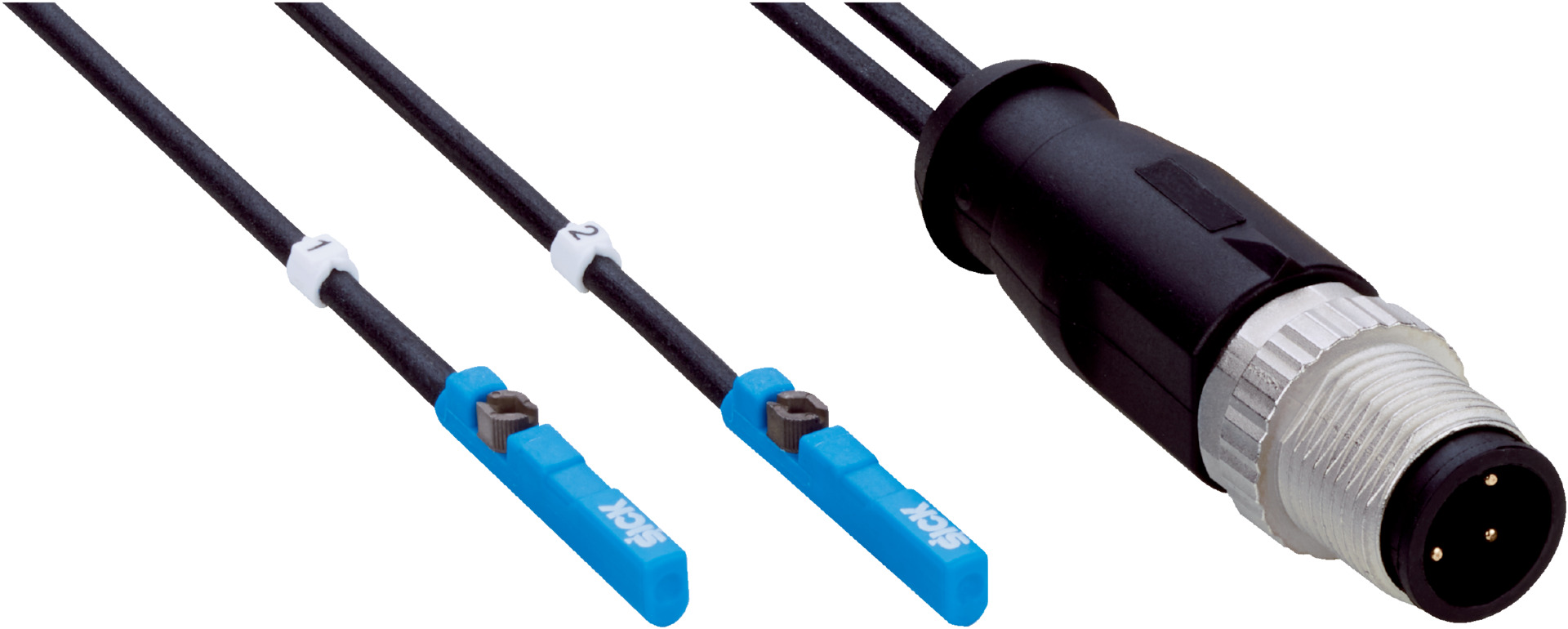

C-Slot Cylinder Position Sensor | Dual PNP Output | IP68 Rated | by SICK
The C-slot cylinder position sensor is designed for precise position sensing in industrial automation applications. Featuring dual PNP outputs and a high switching frequency of 1,000 Hz, this sensor is compatible with various cylinder types, including SMC rail models. With an IP68 rating, it ensures reliable performance in harsh environments, making it ideal for demanding industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Compatible with SMC rail CDQ2, ECDQ2, round body, profile, and tie-rod cylinders
- Housing length: 23.7 mm
- Switching output: 2 x PNP, 2 x N/O contact
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 2.2 mT typical
- Overrun distance: 4 mm typical
- Hysteresis: ≤ 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED included
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliant according to EN 60947-5-2
- Connection: Cable with M12 male connector, 4-pin, 0.5 m
- Cable diameter: 2.2 mm, PUR material
- Dimensions (H x L x W): 10mm x 40mm x 24mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type sensor
- Two sensor heads on one plug for dual sensing
- Switching output: 2 x PNP with 2 x N/O contacts
- High switching frequency of 1,000 Hz
- Electrical wiring: DC 4-wire
- Enclosure rating IP68 for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing on cylinders
- Use with SMC rail CDQ2, ECDQ2, round body, profile, and tie-rod cylinders
- Suitable for harsh environments requiring IP68 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 rated housing reduces need for frequent replacements
- Low power consumption of 8 mA without load
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

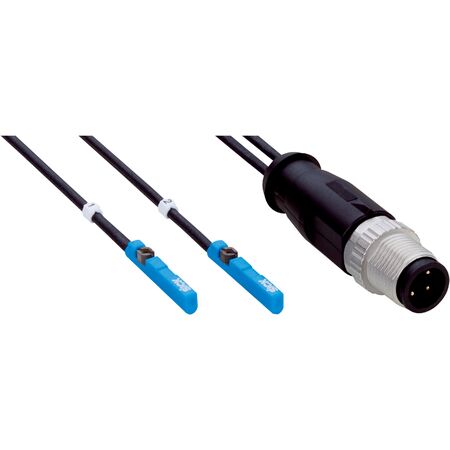

The SICK MZC1-2V2PS-KQTS18 cylinder sensor is available for immediate purchase, ideal for industrial automation and position sensing applications.
