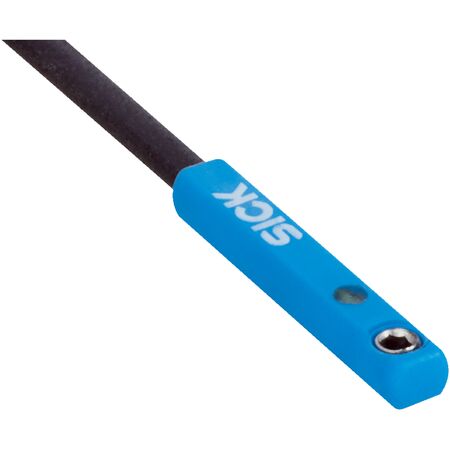

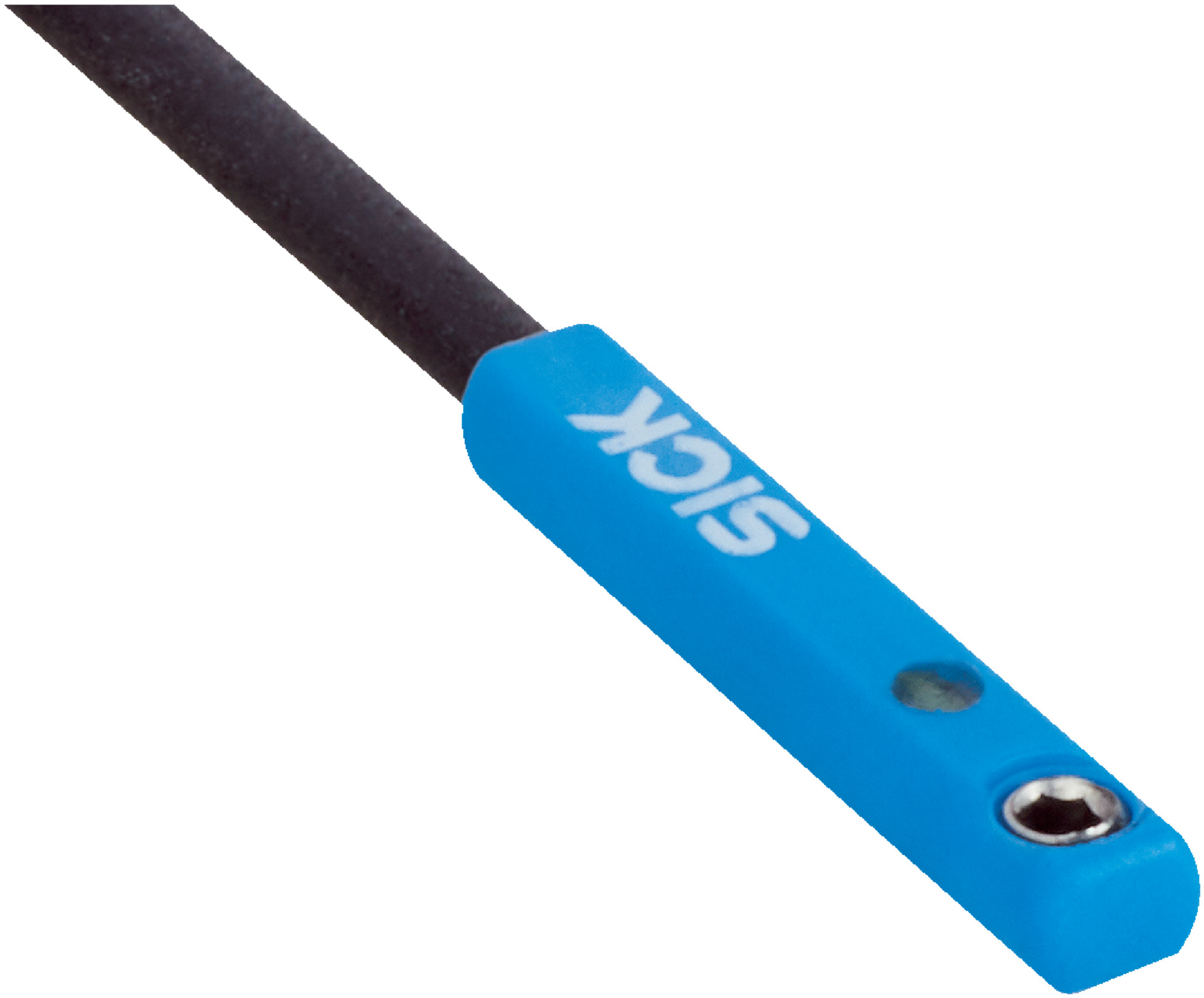

C-slot Cylinder Position Sensor | NPN Output | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The C-slot Cylinder Position Sensor is designed for precise position sensing in industrial automation applications. With an NPN switching output and a high switching frequency of 1,000 Hz, it ensures reliable performance in demanding environments. The IP67 rated enclosure provides excellent protection against dust and water, making it ideal for integration with pneumatic cylinders in manufacturing and assembly lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Switching output: NPN, normally open
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Connection type: Cable with M8 3-pin plug, 0.5 m length
- Cable diameter: 1.9 mm
- Material: Plastic housing, PUR cable
- Operating temperature range: -25 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Reverse polarity, short-circuit, and power-up pulse protection included
- Status indicator LED included
- Dimensions (H x L x W): 19.5mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type sensor
- NPN switching output with normally open function
- High switching frequency of 1,000 Hz
- Completely embedded mounting in the slot for protection
- IP67 rated enclosure for dust and water resistance
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable with M8 3-pin plug, 0.5 m length, axial outlet
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to manufacturer guidelines and safety standards.
Applications
- Industrial automation for cylinder position sensing
- Integration with Festo, Zimmer, Gimatic pneumatic cylinders
- Use in manufacturing and assembly lines requiring precise position detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 8 mA without load
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZC2-1V7NS-FR0 C-slot Cylinder Sensor is available for immediate purchase. Ideal for industrial automation and pneumatic cylinder position sensing applications.
