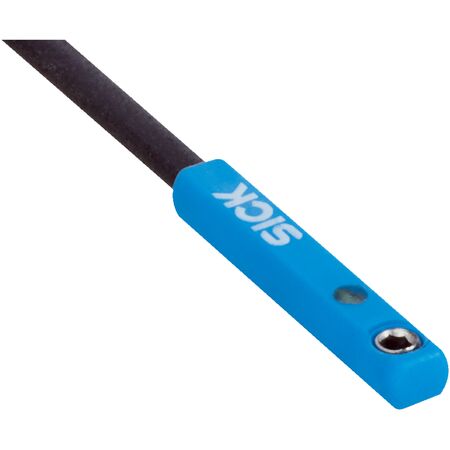

C-slot Cylinder Position Sensor | NPN Output | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The C-slot Cylinder Position Sensor is designed for precise position sensing in industrial automation, featuring an NPN output and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in dusty and wet environments, making it ideal for integration with pneumatic cylinders from Festo, Zimmer, and Gimatic.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Enclosure rating: IP67
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Connection type: 2 m PUR cable, 3-wire, stripped and tin plated
- Operating temperature range: -25 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Status indicator: LED
- Reverse polarity, short-circuit, and power-up pulse protection included
- Dimensions (H x L x W): 20mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type sensor compatible with Festo, Zimmer, Gimatic cylinders
- NPN switching output with normally open (NO) function
- High switching frequency of 1,000 Hz for fast response
- Completely embedded mounting in the slot for protection
- IP67 rated enclosure for dust and water resistance
- Status indicator LED for operational feedback
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection with 3-wire DC wiring and 2 m PUR cable
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for cylinder position sensing
- Integration with pneumatic cylinders from Festo, Zimmer, Gimatic
- Use in manufacturing and assembly lines requiring precise position detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 8 mA without load
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
