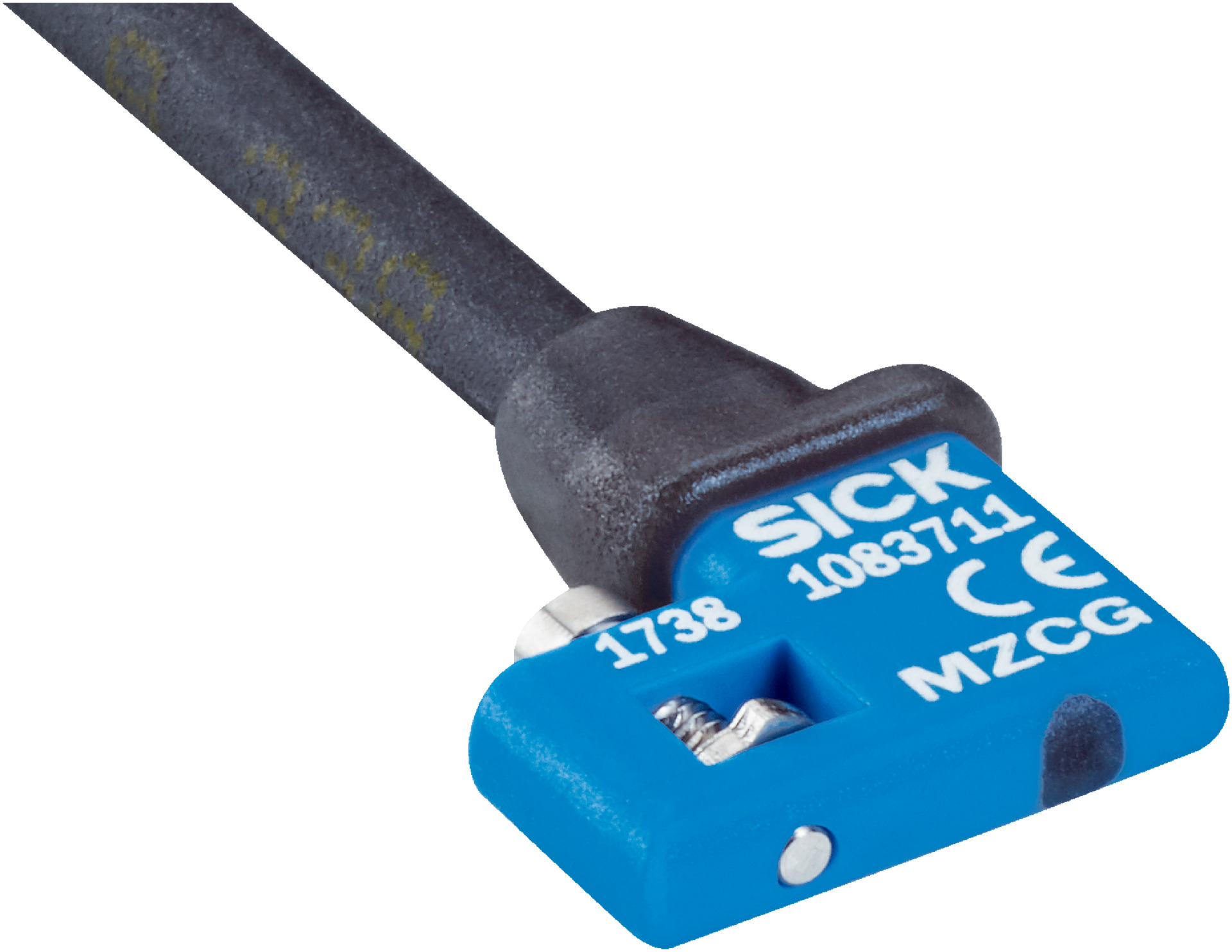

C-slot Cylinder Position Sensor | NPN Output | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The C-slot cylinder position sensor is designed for precise position sensing in industrial automation, featuring a high switching frequency of 1,000 Hz and an IP68 rated enclosure for dust and water protection. Ideal for pneumatic and hydraulic cylinder monitoring, this robust sensor operates within a wide voltage range of 10 V DC to 30 V DC, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Switching output: NPN, normally open (NO)
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 7 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: 3-wire cable, 5 m length, PUR
- Cable diameter: 2.9 mm
- Torsion cycles: 2,000,000
- Drag chain cycles: > 2,000,000
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- NPN switching output with normally open (NO) function
- High switching frequency of 1,000 Hz for fast response
- IP68 rated enclosure for dust and water protection
- Wide supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 7 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Robust design with shock and vibration resistance (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection with 3-wire stripped cable, 5 m length, PUR material
- Operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and pneumatic systems to ensure proper sensor alignment and secure wiring connections.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Manufacturing process control
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP68 housing extends product life and reduces waste
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

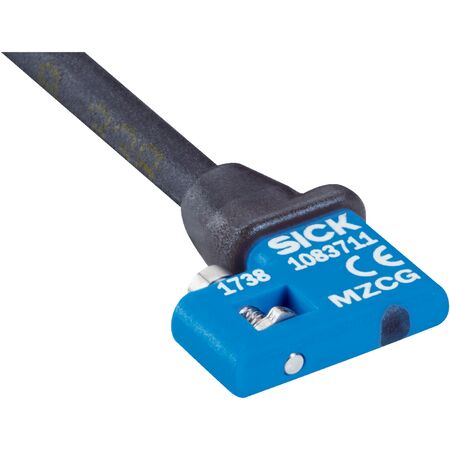

The SICK MZCG-1Z7NS-KUB C-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
