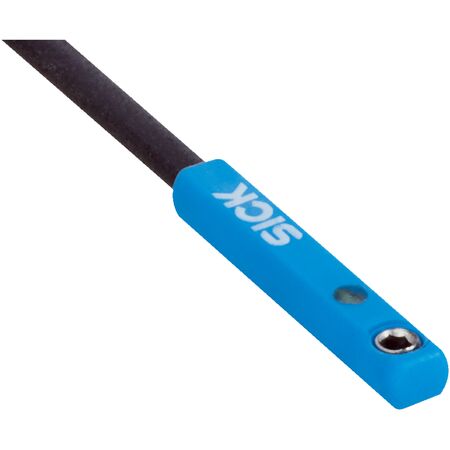

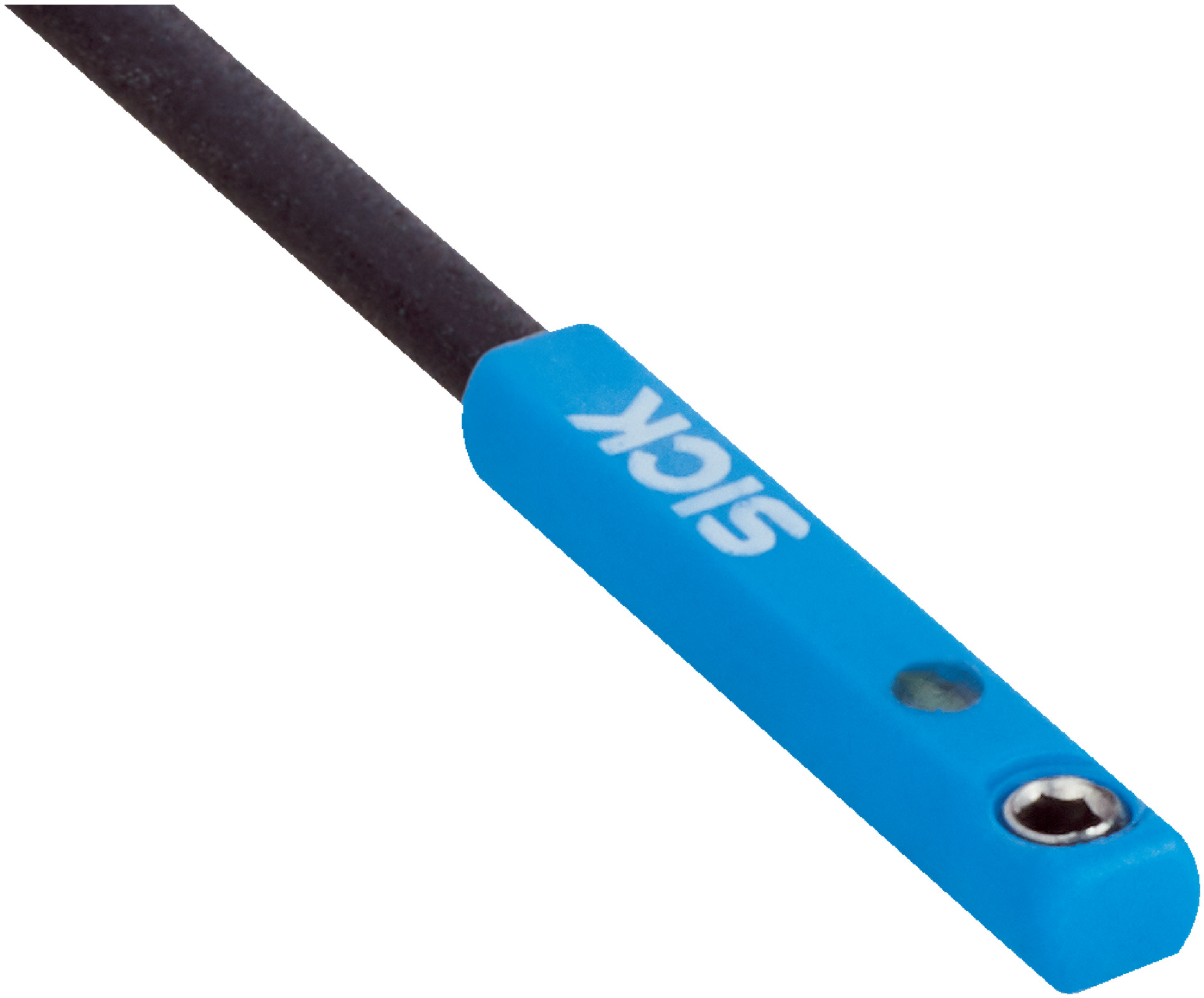

C-slot Cylinder Position Sensor | PNP Output | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The C-slot cylinder position sensor is designed for industrial automation, featuring a PNP switching output and an impressive 1000 Hz switching frequency. With an IP67 rated enclosure, it ensures reliable performance in dusty and wet environments, making it ideal for manufacturing equipment and robotics applications. Its embedded mounting design provides added protection, while the status indicator LED offers operational feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Connection type: Cable with M8 3-pin plug, 0.5 m length
- Material: Plastic housing, PUR cable
- Protection class: III
- Operating temperature: -25 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliant according to EN 60947-5-2
- Status indicator LED included
- Reverse polarity, short-circuit, and power-up pulse protection
- Dimensions (H x L x W): 20mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with Festo, Zimmer, Gimatic
- PNP switching output with normally open (NO) function
- High switching frequency of 1,000 Hz
- Completely embedded mounting in the slot for protection
- IP67 rated enclosure for dust and water resistance
- Status indicator LED for operational feedback
- Reverse polarity, short-circuit, and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Manufacturing equipment requiring precise switching output
- Robotics and pneumatic systems with embedded mounting slots
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces replacement frequency and waste
- Low power consumption of 8 mA minimizes energy use
- Robust design reduces downtime and resource waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZC2-1V7PS-FR0 C-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise and reliable position sensing.
