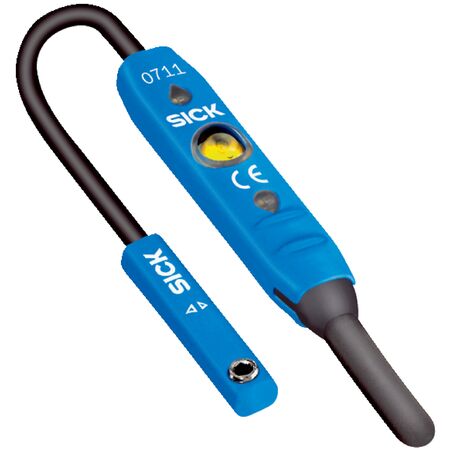

C-slot Cylinder Sensor | 0-50mm Detection Zone | 2 x PNP Outputs | IP67 Rated | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position detection in industrial automation. With a detection zone of 0 mm to 50 mm and two PNP switching outputs, it ensures reliable performance in manufacturing and robotics applications. Its IP67 rated enclosure provides dust and water protection, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C-slot Cylinder Sensor | 0-50mm Detection Zone | 2 x PNP Outputs | IP67 Rated | by SICK
Brand: SICK
SKU: 1051588
Alternatively Known As: C-slot Cylinder Sensor, SICK Cylinder Position Sensor, MZ2Q Sensor, PNP Cylinder Sensor
Technical Specifications
- Cylinder type: C-slot
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP, 2 x normally open contacts
- Electrical wiring: DC 4-wire
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typical 20 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Teach-in function: Yes
- Ambient operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 4-wire, 0.1 m
- Housing material: Plastic
- Cable material: PUR
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC and Bimba cylinders
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for easy adjustment of switching points
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor calibration.
Applications
- Industrial automation for cylinder position detection
- Manufacturing equipment requiring precise cylinder position sensing
- Robotics and assembly line machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces replacement frequency and waste
- Low power consumption (typ. 20 mA) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MZ2Q-CSSPSKUAS05 C-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
