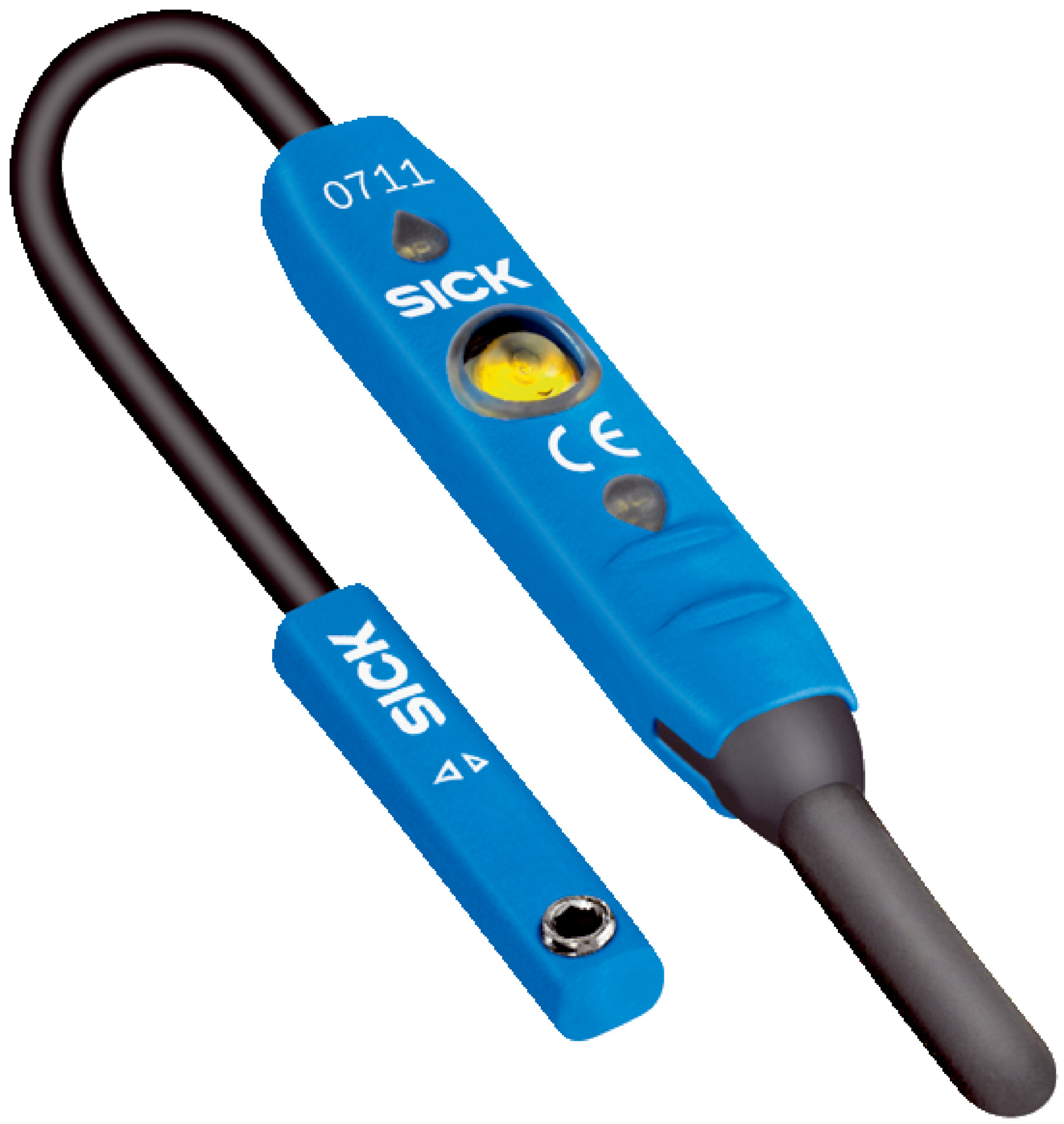

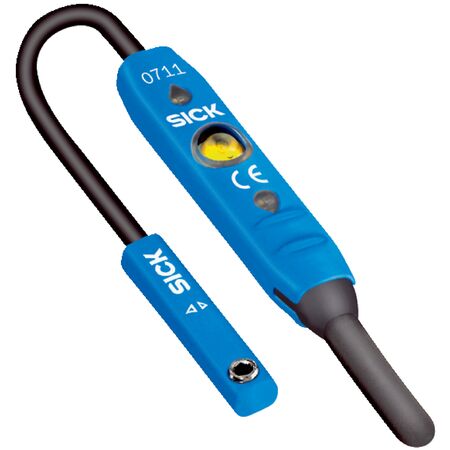

C-slot Cylinder Sensor | 0-50mm Detection Zone | 2 x PNP Outputs | IP67 Rated | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position detection, featuring a detection zone from 0 mm to 50 mm and dual PNP outputs for reliable performance. Ideal for industrial automation, this sensor is built to withstand harsh environments with its IP67 rated enclosure, ensuring durability and efficiency in your applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP, 2 x normally open contacts
- Electrical wiring: DC 4-wire
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typical 20 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Teach-in function: Yes
- Power-up pulse protection: Yes
- Operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 4-wire, 0.1 m length
- Cable diameter: Ø 2.3 mm
- Housing material: Plastic
- Cable material: PUR
- Dimensions (H x L x W): 20mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC and Bimba
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for switching point adjustment
- Software version V303
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for cylinder position detection
- Use with SMC and Bimba cylinders
- Suitable for environments requiring IP67 rated sensors
