C-slot Cylinder Sensor | 0-50mm Detection Zone | Dual PNP Outputs | IP67 Rated | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position detection, featuring a detection zone from 0 mm to 50 mm and dual PNP switching outputs. Ideal for industrial automation and pneumatic monitoring, this sensor offers robust IP67 protection against dust and water, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

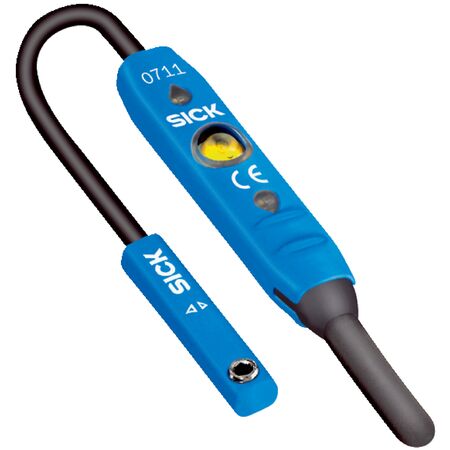

Product Name/Title: C-slot Cylinder Sensor | 0-50mm Detection Zone | Dual PNP Outputs | IP67 Rated | by SICK
Brand: SICK
SKU: 1044557
Alternatively Known As: C-slot Cylinder Sensor, Pneumatic Cylinder Position Sensor, SICK Cylinder Sensor MZ2Q, Dual PNP Cylinder Sensor
Technical Specifications
- Cylinder type: C-slot
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP, 2 x N/O contact
- Electrical wiring: DC 4-wire
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typical 20 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Teach-in function: Yes
- Ambient operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 4-wire, 0.1 m, PUR cable
- Cable diameter: Ø 2.3 mm
- Bending radius: Fixed installation > 5 x cable diameter, flexible use > 10 x cable diameter
- Housing material: Plastic
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC and Bimba cylinders
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for easy adjustment of switching points
- Special hysteresis for precise switching
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor integration to ensure proper function and safety.
Applications
- Industrial automation for cylinder position detection
- Pneumatic cylinder monitoring
- Manufacturing process control
- Robotics and assembly lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 housing reduces replacement frequency and waste
- Low power consumption (typ. 20 mA) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK MZ2Q-CSSPSKR0S01 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position detection applications.
