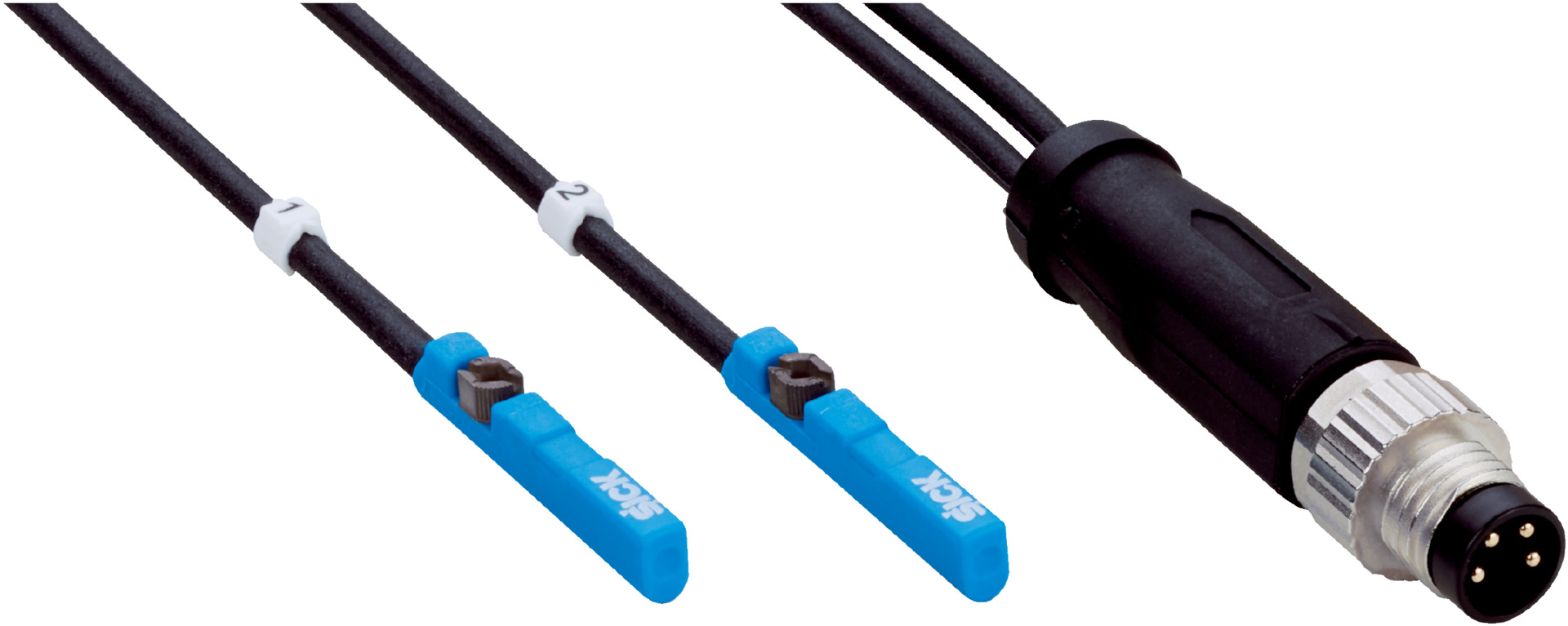

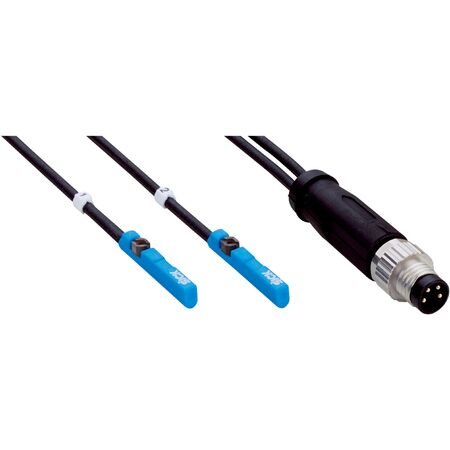

C-Slot Cylinder Sensor MZC1-2V2PS-KRTS17 | Dual PNP Outputs | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The C-slot cylinder sensor MZC1-2V2PS-KRTS17 features dual PNP outputs and a high switching frequency of 1,000 Hz, making it ideal for precise position sensing in industrial automation. With an IP68 rated enclosure, it offers exceptional protection against dust and water, ensuring reliable performance in harsh environments. Designed for use with various cylinder types, this sensor is a robust solution for your automation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Switching output: 2 x PNP, 2 x N/O contact
- Switching frequency: 1,000 Hz
- Response sensitivity: 2.2 mT typical
- Overrun distance: 4 mm typical
- Hysteresis: ≤ 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Enclosure rating: IP68
- Connection: Cable with M8 4-pin connector, 0.5 m length
- Cable diameter: Ø 2.2 mm
- Material: Plastic housing, PUR cable
- Operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Reverse polarity, short-circuit, and power-up pulse protection included
- Dimensions (H x L x W): 15mm x 40mm x 24mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type sensor
- Two sensor heads on one plug for dual sensing
- 2 x PNP switching outputs with N/O contacts
- High switching frequency of 1,000 Hz
- IP68 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 4-pin connector, 0.5 m length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for position sensing on cylinders
- Use with SMC rail CDQ2, ECDQ2, round body, profile, and tie-rod cylinders
- Suitable for harsh environments requiring IP68 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 8 mA reduces energy usage
- Durable IP68 housing extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MZC1-2V2PS-KRTS17 sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
