C-slot Cylinder Sensor | Compatible with Festo | 0-50mm Detection Zone | IP67 Rated | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position sensing in industrial automation, featuring a detection zone from 0 mm to 50 mm and compatibility with Festo cylinders. With dual PNP switching outputs and an IP67 rated enclosure, it ensures reliable performance in demanding environments, making it ideal for manufacturing process control and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

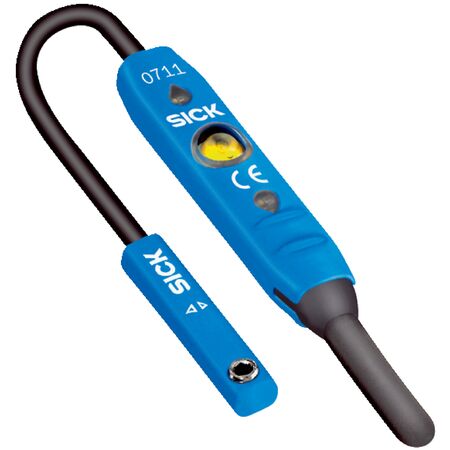

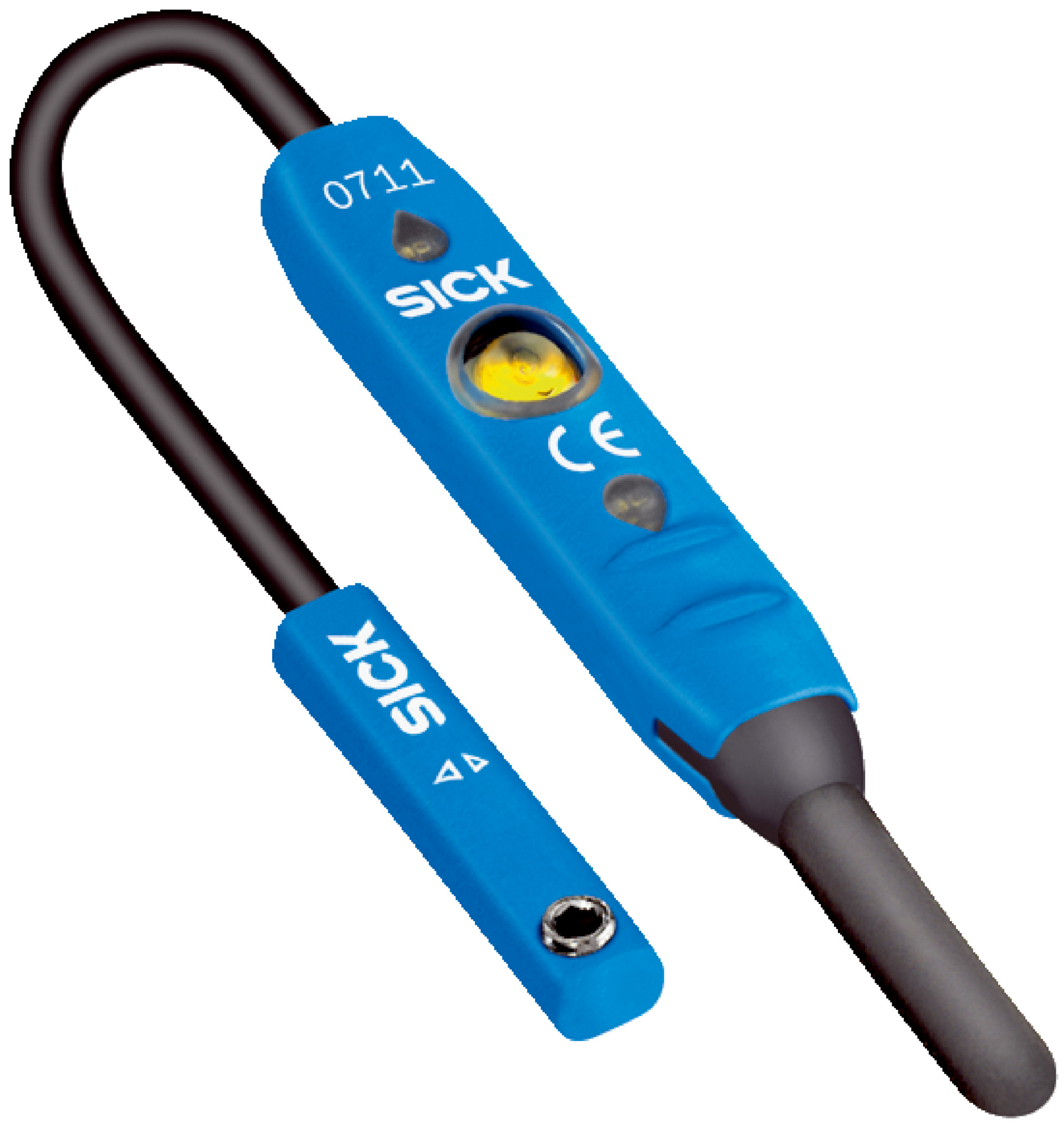

Product Name/Title: C-slot Cylinder Sensor | Compatible with Festo | 0-50mm Detection Zone | IP67 Rated | by SICK
Brand: SICK
SKU: 1042242
Alternatively Known As: C-slot Cylinder Sensor, SICK Cylinder Position Sensor, MZ2Q Sensor, PNP Cylinder Sensor
Technical Specifications
- Cylinder type: C-slot
- Preferred manufacturer slot: Festo
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP, 2 x N/O contact
- Electrical wiring: DC 4-wire
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 20 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typically 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Teach-in function: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 4-wire, 0.1 m
- Cable diameter: Ø 2.3 mm
- Material: Plastic housing, PUR cable
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with Festo cylinders
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for easy adjustment of switching points
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Manufacturing process control
- Robotics and machinery requiring precise detection zones
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption (typ. 20 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZ2Q-CFSPSKP0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
