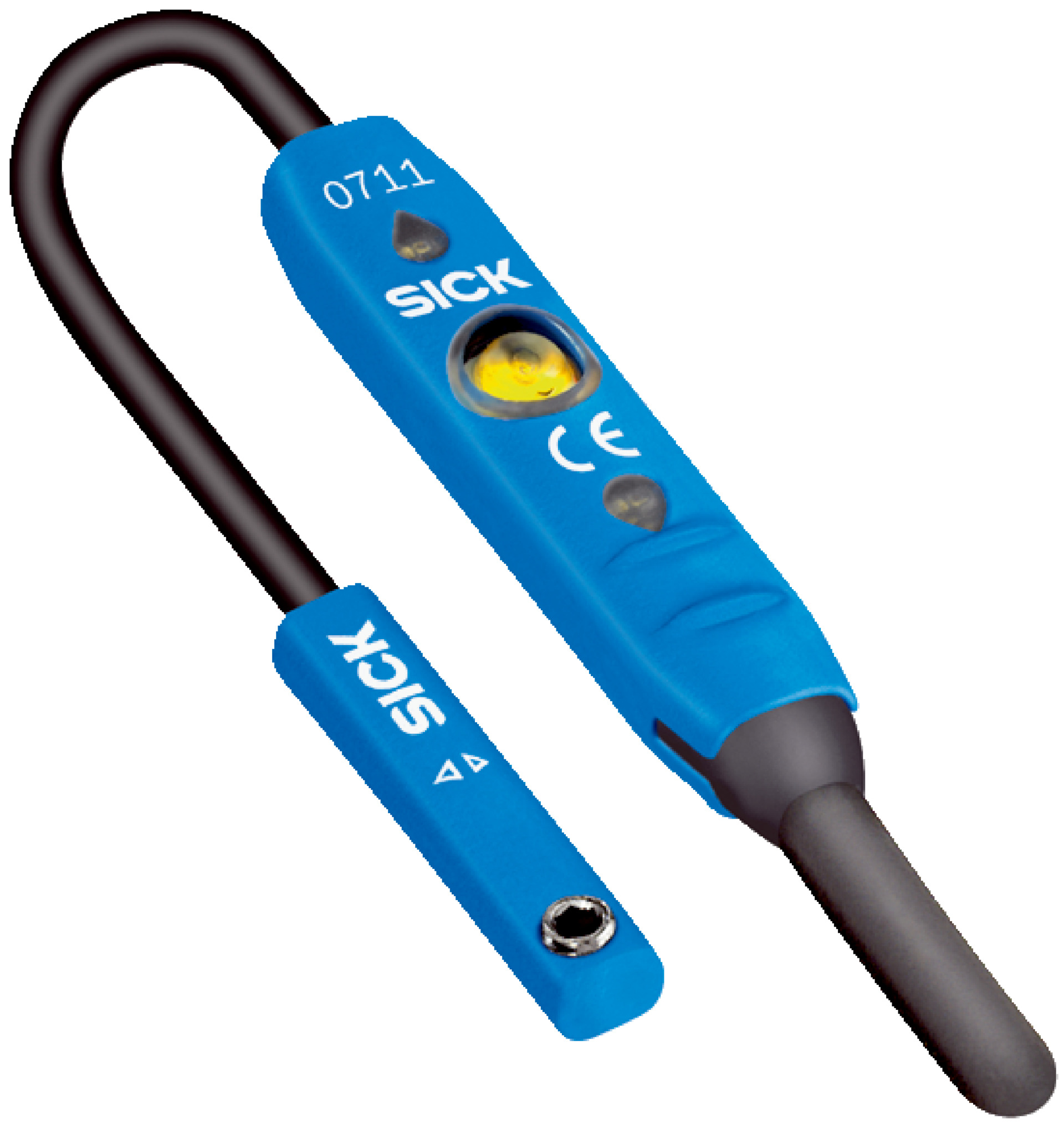

C-slot Cylinder Sensor | IO-Link Communication | IP67 Rated | 0-50mm Detection Zone | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position detection in industrial automation. With IO-Link communication and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for factory and process automation, this sensor features a detection zone from 0 mm to 50 mm and is compatible with Festo cylinders, making it a versatile choice for pneumatic systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C-slot Cylinder Sensor | IO-Link Communication | IP67 Rated | 0-50mm Detection Zone | by SICK
Brand: SICK
SKU: 1043697
Alternatively Known As: C-slot Cylinder Sensor, IO-Link Cylinder Sensor, SICK Cylinder Position Sensor
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity and short-circuit protection included
- Status indicator LED present
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Cycle time: 2.3 ms
- Process data length: 2 Bit
- Cable: PUR, 4-wire, 0.1 m length, 0.08 mm² conductor cross section
- Enclosure rating: IP67
- Operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Dimensions (H x L x W): 20mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with Festo cylinders
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with 2 x N/O contacts and IO-Link communication
- DC 4-wire electrical wiring with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for switching point adjustment
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for cylinder position detection
- Factory and process automation requiring precise switching outputs
- Integration with Festo cylinders and similar pneumatic systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with typical 25 mA current draw
- Durable plastic housing and PUR cable for long service life reducing waste
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

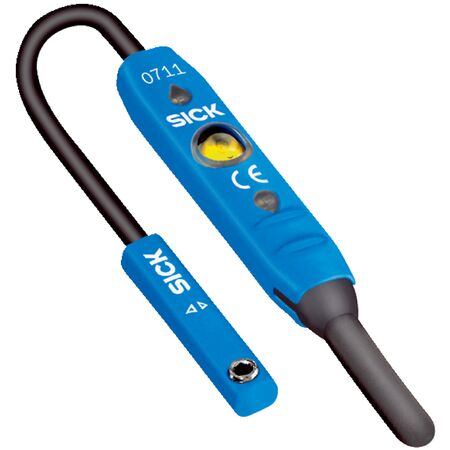

The SICK MZ2Q-CFLPSKQ0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position detection.
