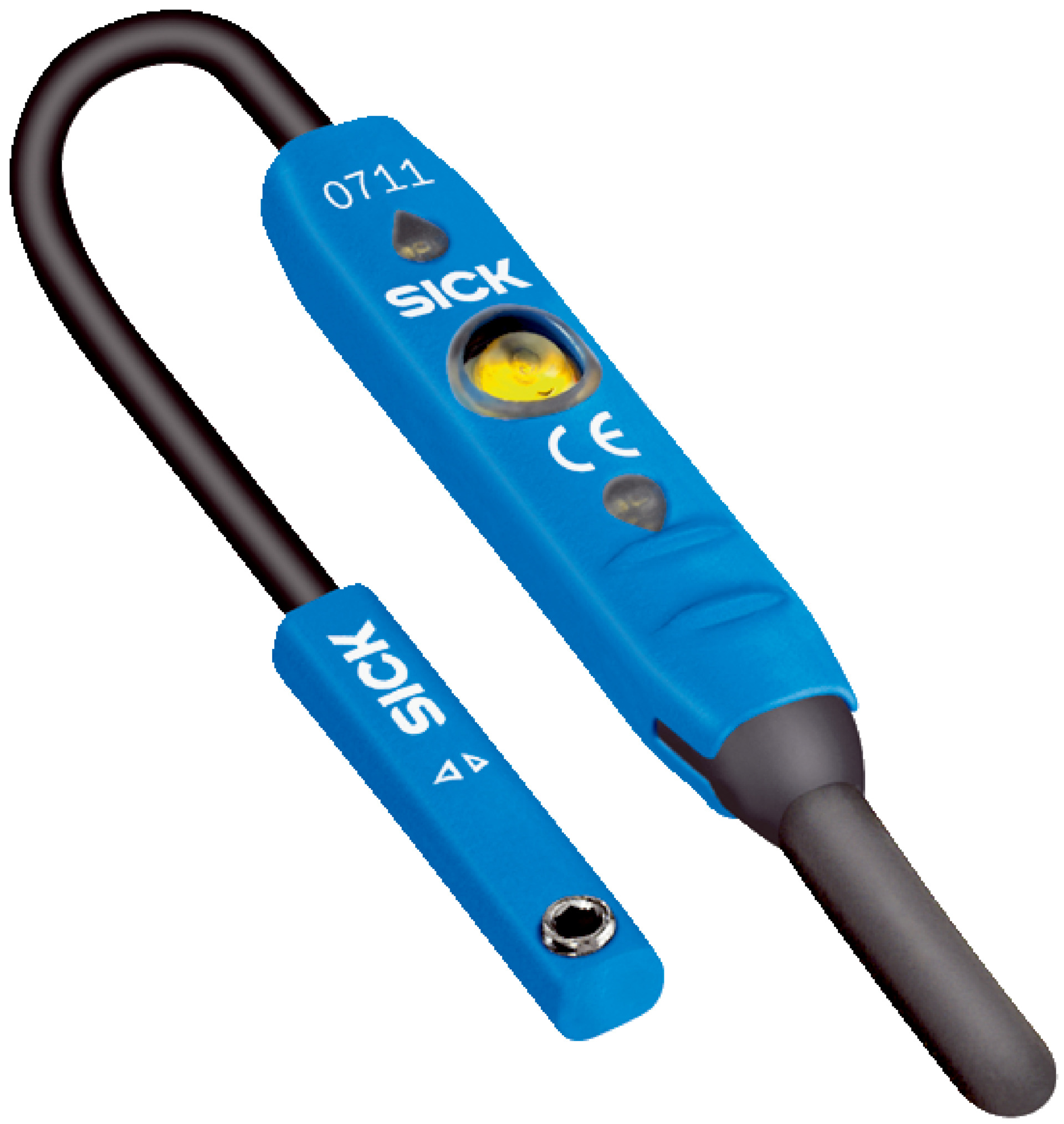

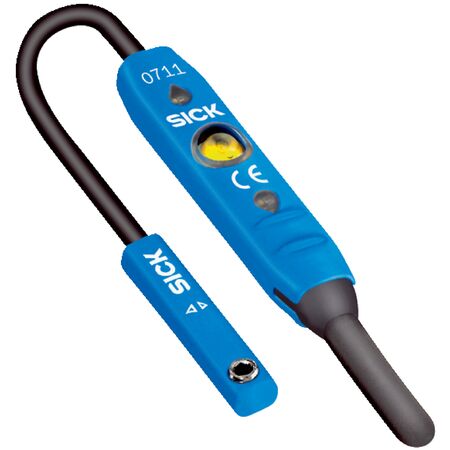

C-slot Cylinder Sensor | IO-Link Communication | IP67 Rated | 0-50mm Detection Zone | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position detection in industrial automation. With IO-Link communication and an IP67 rated enclosure, it ensures reliable performance in demanding environments. Ideal for use with SMC, Bimba, and Schunk cylinders, this sensor features a detection zone of 0 mm to 50 mm and includes reverse polarity and short-circuit protection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis typical: 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity and short-circuit protection included
- Status indicator LED present
- Operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Connection: 4-wire cable, 0.1 m length, PUR material
- Communication: IO-Link V1.0, COM2 (38.4 kBaud), cycle time 2.3 ms
- Process data length: 2 Bit
- Dimensions (H x L x W): 20mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC, Bimba, Schunk
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with 2 x N/O contacts and IO-Link communication
- DC 4-wire electrical wiring with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Teach-in control panel for switching points 1 and 2 with adjustable tolerance band in 5 stages
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -20 °C to +75 °C
- Communication interface IO-Link V1.0 with COM2 (38.4 kBaud) and 2.3 ms cycle time
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and configuration of IO-Link functions.
Applications
- Industrial automation for cylinder position detection
- Use with SMC, Bimba, Schunk cylinders
- Suitable for environments requiring precise switching point detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with typical 25 mA current draw
- Durable plastic housing and PUR cable for long service life reducing waste
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MZ2Q-CSLPSKR0 C-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position detection applications.
