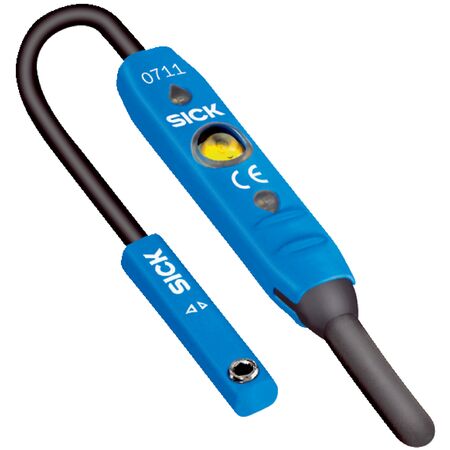

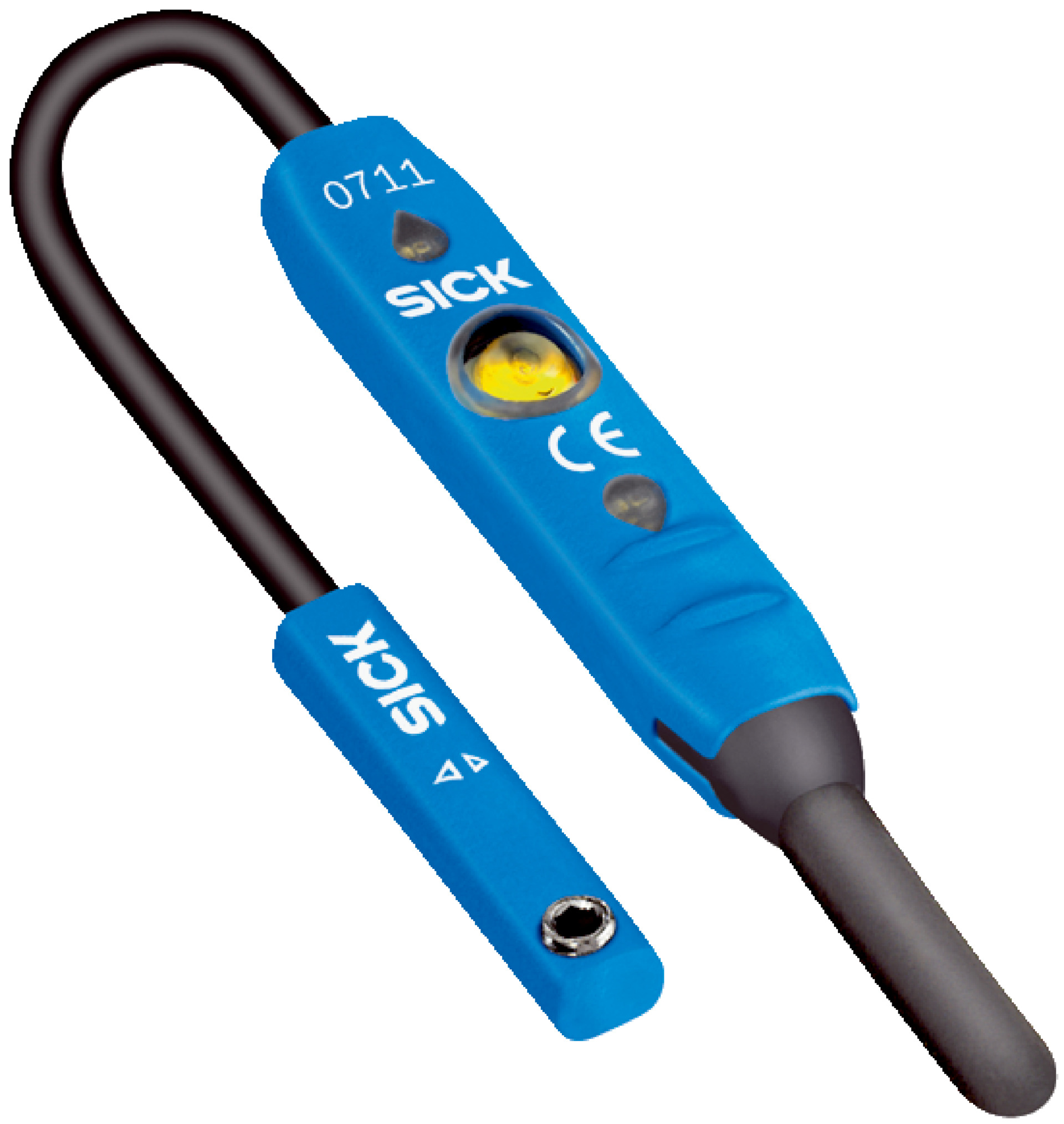

C-slot Cylinder Sensor | IO-Link Communication | IP67 Rated | 0-50mm Detection Zone | by SICK
The C-slot Cylinder Sensor is designed for precise position detection in industrial automation, featuring IO-Link communication and an IP67 rated enclosure for dust and water protection. With a detection zone of 0 mm to 50 mm and robust shock resistance, it's perfect for pneumatic systems and factory automation, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Hysteresis: Typically 1 mT
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Connection type: 4-wire cable, 0.1 m length, PUR material
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Cycle time: 2.3 ms
- Process data length: 2 Bit
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Operating temperature: -20 °C to +75 °C
- Status indicator: LED
- Reverse polarity and short-circuit protection: Yes
- Teach-in function: Yes
- Dimensions (H x L x W): 20mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with Festo cylinders
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with 2 x N/O contacts
- IO-Link communication interface with standard functions
- IP67 rated enclosure for dust and water protection
- DC 4-wire electrical wiring with reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Ambient operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor wiring to ensure proper configuration and safety.
Applications
- Industrial automation for position detection
- Cylinder sensing in pneumatic systems
- Factory automation requiring precise switching outputs
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with typical 25 mA current draw
- Durable plastic housing and PUR cable for long service life reducing waste
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZ2Q-CFLPSKR0 C-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
