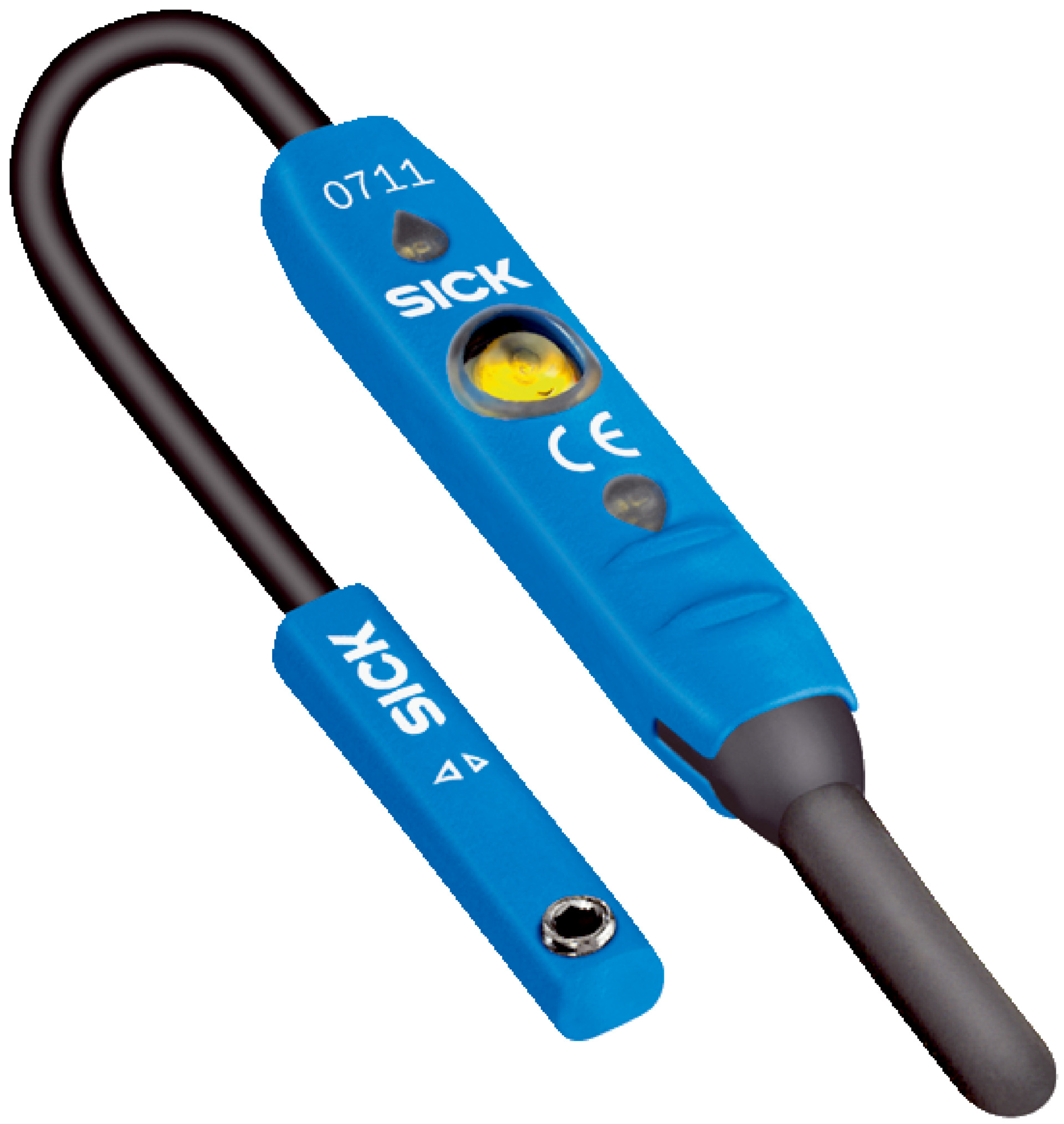

C-slot Cylinder Sensor | IO-Link Communication | IP67 Rated | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position detection in industrial automation. Featuring IO-Link communication and an IP67 rated enclosure, it ensures reliable performance in demanding environments. With a detection zone of 0 mm to 50 mm and robust shock resistance, this sensor is perfect for use with SMC, Bimba, and Schunk cylinders, providing accurate switching outputs and operational feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C-slot Cylinder Sensor | IO-Link Communication | IP67 Rated | by SICK
Brand: SICK
SKU: 1043696
Alternatively Known As: C-slot Cylinder Sensor, IO-Link Cylinder Position Sensor, SICK Cylinder Sensor MZ2Q, Magnetic Cylinder Sensor
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typical 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity and short-circuit protection included
- Status indicator LED for operational feedback
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Cycle time: 2.3 ms
- Process data length: 2 Bit
- Cable: PUR, 4-wire, 0.1 m length, 0.08 mm² conductor cross section
- Enclosure rating: IP67
- Operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC, Bimba, Schunk
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with 2 x N/O contacts
- IO-Link communication interface V1.0 with COM2 (38.4 kBaud)
- IP67 rated enclosure for dust and water protection
- DC 4-wire electrical wiring with reverse polarity and short-circuit protection
- Status indicator LED and teach-in function for switching points
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for cylinder position detection
- Use with SMC, Bimba, Schunk cylinders
- Suitable for environments requiring precise switching output and IO-Link communication
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with typical 25 mA current draw
- Durable plastic housing and PUR cable for long service life reducing waste
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

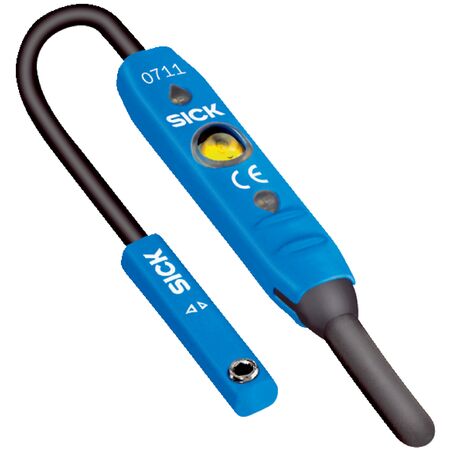

The SICK MZ2Q-CSLPSKQ0 C-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
