C-slot Cylinder Sensor | IO-Link Functionality | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The C-slot Cylinder Sensor with IO-Link functionality is designed for precise cylinder position sensing in industrial automation. With an IP68 rating for dust and water resistance, it operates in harsh environments and features a high switching frequency of up to 1,000 Hz. Ideal for use with various cylinder adapters, this sensor ensures reliable performance and easy integration into your automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 2.2 mT typical
- Overrun distance: 4 mm typical
- Hysteresis: ≤ 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Enclosure rating: IP68
- Switching frequency: 1,000 Hz
- Switching output: PNP NO with IO-Link
- Connection: Cable with M8 3-pin connector, 0.3 m length
- Ambient operating temperature: -30°C to +80°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10-55 Hz, 1 mm
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 8 Bit
- Dimensions (H x L x W): 10mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with various cylinder adapters
- Switching output: PNP with NO and IO-Link functionality
- High switching frequency up to 1,000 Hz
- Enclosure rating IP68 for dust and water resistance
- Visual installation aid with yellow LED indicator and green power LED
- Adjustable IO-Link parameters including switch-on/off delay up to 1.6 seconds
- Robust plastic housing with PUR cable and axial cable outlet
- Reverse polarity, short-circuit, and power-up pulse protection
- Wide ambient operating temperature range from -30°C to +80°C
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Communication via IO-Link V1.0 with COM2 (38.4 kBaud) interface
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration of IO-Link parameters.
Applications
- Industrial automation for cylinder position sensing
- Use with SMC rail CDQ2, ECDQ2, round body, profile, and tie-rod cylinders
- Suitable for harsh environments requiring IP68 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 8 mA without load
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

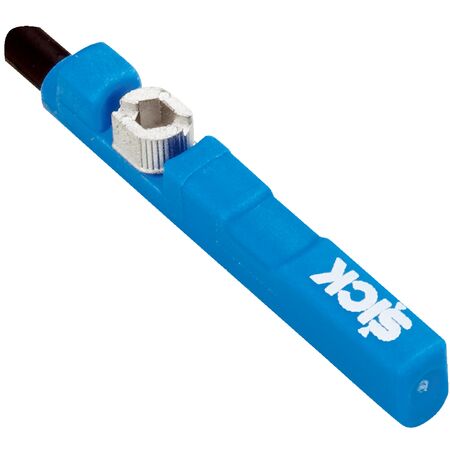

The SICK MZC1-2V2PSAKP0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
