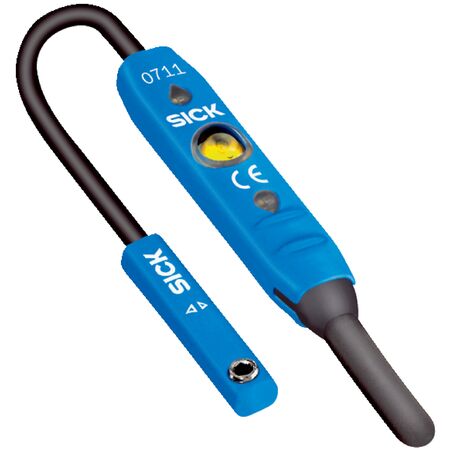

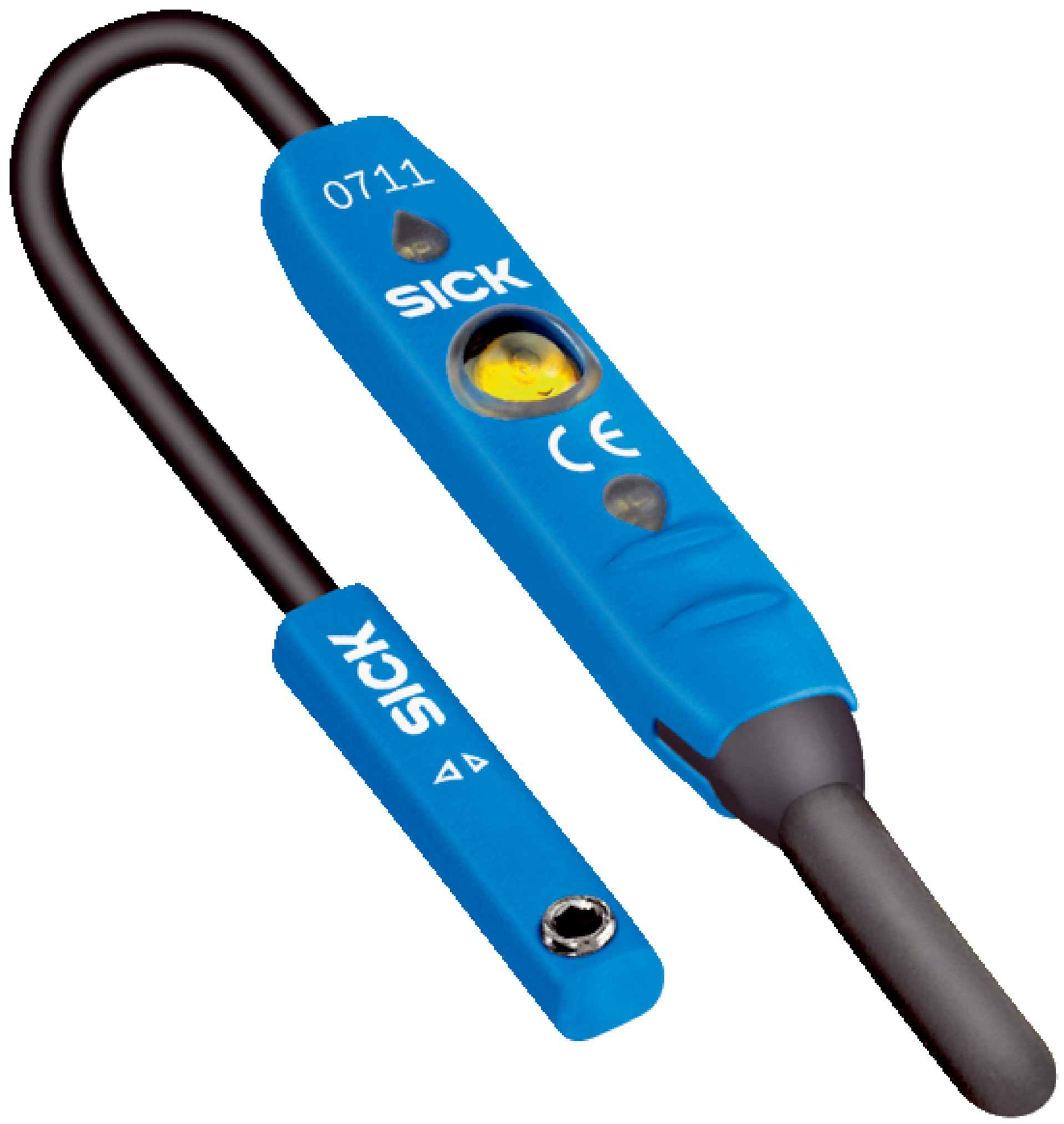

C-slot Cylinder Sensor | IP67 Rated | 2 x PNP Outputs | 0-50mm Detection Zone | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position detection in industrial automation, featuring a detection zone from 0 mm to 50 mm and 2 x PNP switching outputs. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and factory equipment monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C-slot Cylinder Sensor | IP67 Rated | 2 x PNP Outputs | 0-50mm Detection Zone | by SICK
Brand: SICK
SKU: 1042243
Alternatively Known As: C-slot Cylinder Sensor, SICK Cylinder Position Sensor, MZ2Q Sensor, PNP Cylinder Sensor
Technical Specifications
- Cylinder type: C-slot
- Preferred manufacturer slot: Festo
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP
- Output function: 2 x Normally Open contact
- Electrical wiring: DC 4-wire
- Enclosure rating: IP67
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typical 20 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Teach-in function: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: 4-wire cable, 0.1 m length
- Cable diameter: Approximately 2.3 mm
- Housing material: Plastic
- Cable material: PUR
- Dimensions (H x L x W): 10mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with Festo cylinders
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for easy switching point adjustment
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor integration to ensure proper setup and safety compliance.
Applications
- Industrial automation for cylinder position detection
- Manufacturing process control
- Factory equipment monitoring
- Pneumatic cylinder position sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption (typ. 20 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZ2Q-CFSPSKR0 C-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
