C-slot Cylinder Sensor | IP67 Rated | 2 x PNP Outputs | 0-50mm Detection Zone | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position detection in industrial automation, featuring a detection zone from 0 mm to 50 mm and two PNP switching outputs. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for pneumatic and hydraulic applications, robotics, and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

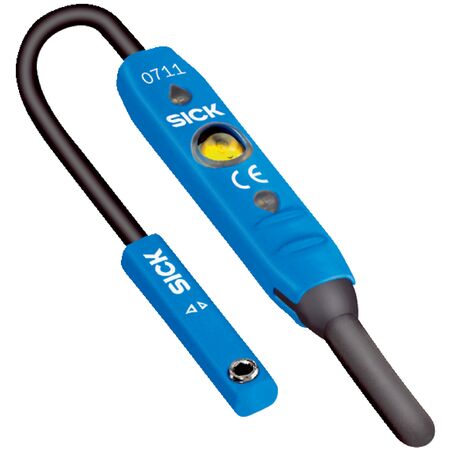

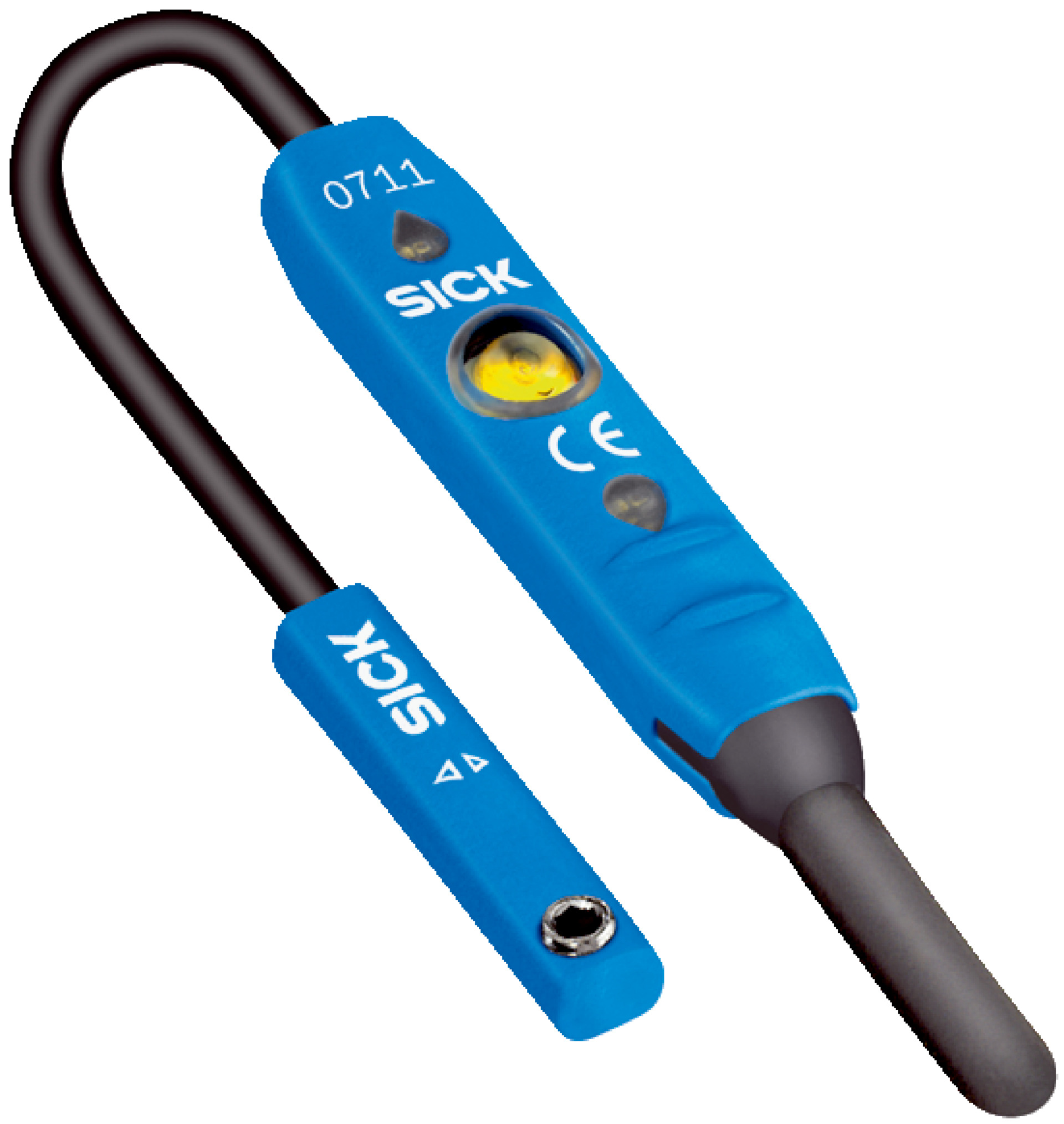

Product Name/Title: C-slot Cylinder Sensor | IP67 Rated | 2 x PNP Outputs | 0-50mm Detection Zone | by SICK
Brand: SICK
SKU: 1042237
Alternatively Known As: C-slot Cylinder Sensor, SICK Cylinder Position Sensor, MZ2Q Sensor, PNP Cylinder Sensor
Technical Specifications
- Cylinder type: C-slot
- Preferred manufacturer slot: SMC Bimba
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP
- Output function: 2 x Normally Open contact
- Electrical wiring: DC 4-wire
- Enclosure rating: IP67
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typical 20 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Teach-in function: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 4-wire, 0.1 m
- Cable diameter: Ø 2.3 mm
- Material housing: Plastic
- Cable material: PUR
- Dimensions (H x L x W): 20mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC and Bimba cylinders
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for easy adjustment of switching points
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor integration to ensure proper function and safety.
Applications
- Industrial automation for cylinder position detection
- Pneumatic and hydraulic cylinder monitoring
- Manufacturing process control
- Robotics and assembly line equipment
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces replacement frequency and waste
- Low power consumption (typ. 20 mA) supports energy efficiency
- Robust design minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZ2Q-CSSPSKU0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
