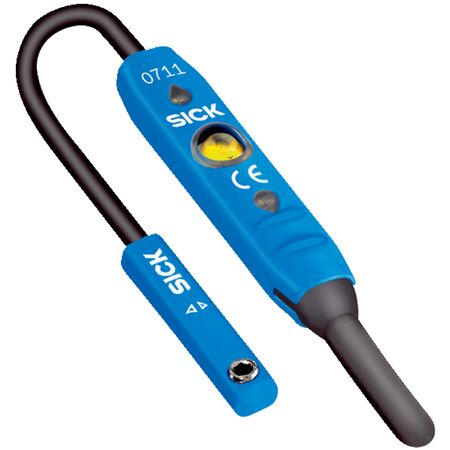

C-slot Cylinder Sensor MZ2Q-CFLPSKU0 | IO-Link Communication | IP67 Rated | PNP Outputs | by SICK
The C-slot Cylinder Sensor MZ2Q-CFLPSKU0 is designed for precise cylinder position detection in industrial automation. With IO-Link communication and IP67 protection, it ensures reliable performance in demanding environments. Ideal for integration with Festo cylinders, this sensor features a detection zone of 0 mm to 50 mm and is built to withstand shock and vibration, making it perfect for factory automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typical 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Ambient operating temperature: –20 °C to +75 °C
- Connection type: 4-wire cable, 0.1 m length, PUR material
- Cable diameter: Ø 2.3 mm
- Bending radius: > 5 x cable diameter (fixed), > 10 x cable diameter (flexible)
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Cycle time: 2.3 ms
- Process data length: 2 Bit
- Status indicator: LED
- Protection rating: IP67
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with Festo cylinders
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with 2 x N/O contacts
- IO-Link communication interface with standard functions
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for switching point adjustment
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and configuration, especially for IO-Link integration.
Applications
- Industrial automation for cylinder position detection
- Factory automation systems requiring precise switching outputs
- Integration with Festo cylinders and pneumatic systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with typical 25 mA current draw
- Durable plastic housing and PUR cable for long service life reducing waste
- Compliant with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZ2Q-CFLPSKU0 C-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position detection.
