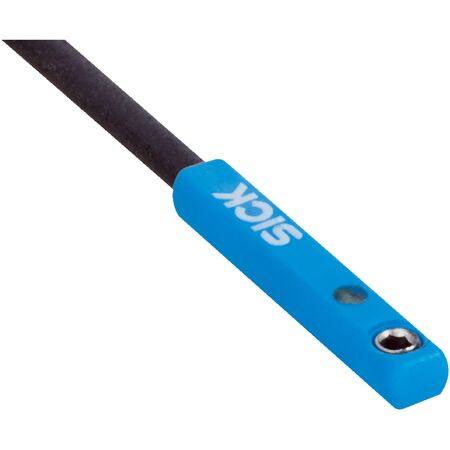

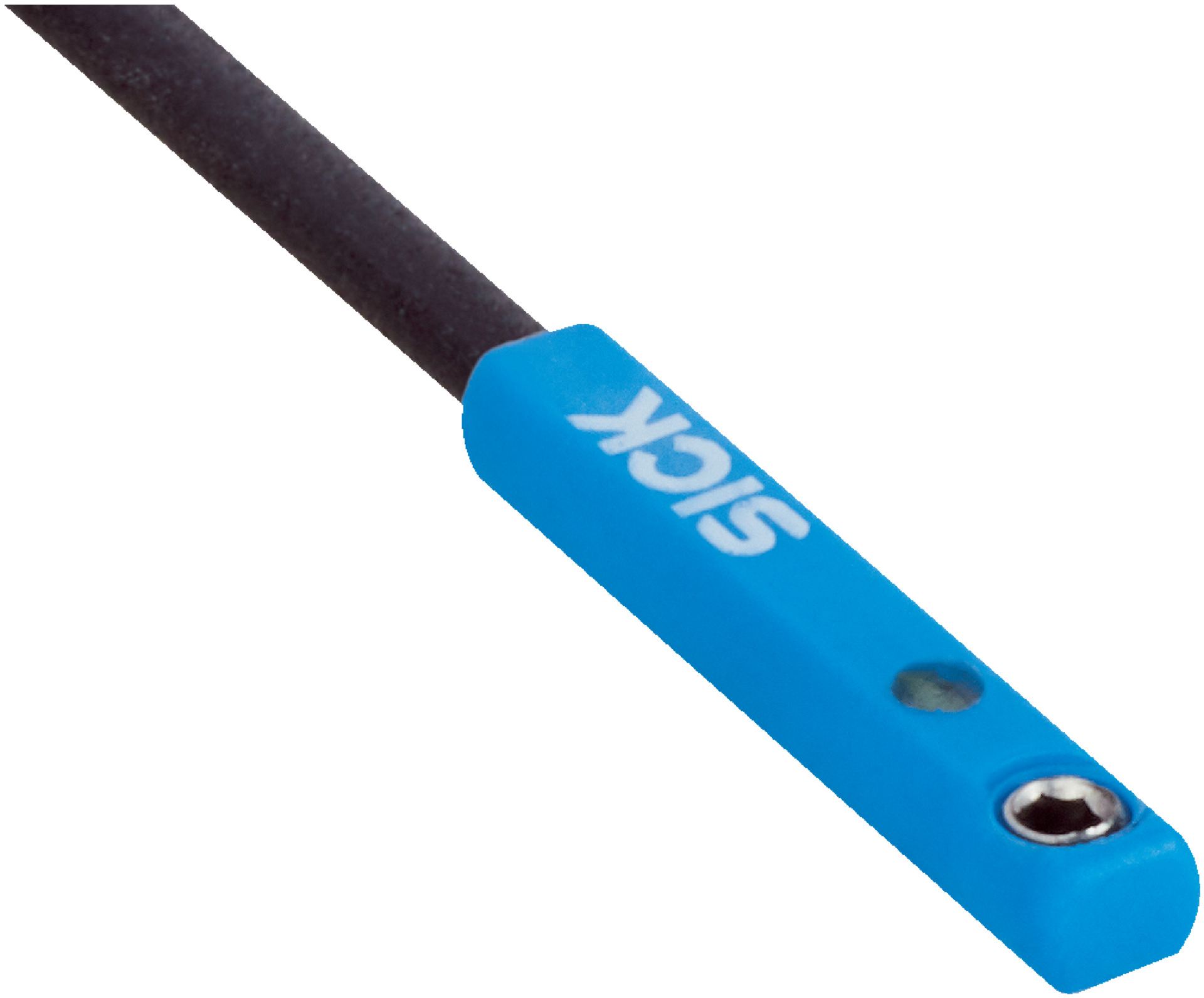

C-slot Cylinder Sensor MZC2-1V7PS-SQD | PNP Output | IP67 Rated | High Switching Frequency | by SICK
The C-slot Cylinder Sensor MZC2-1V7PS-SQD is designed for precise cylinder position sensing in industrial automation. With a PNP output and an impressive high switching frequency of 1,000 Hz, it ensures reliable performance in manufacturing equipment and robotics. Its IP67 rating provides excellent dust and water protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 1.7 mT
- Overrun distance: 2 mm
- Hysteresis: ≤ 0.4 mT
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Connection type: Cable with M12 3-pin connector, 0.5 m length
- Cable diameter: 1.9 mm
- Bending radius: 12x cable diameter fixed, 15x flexible
- Housing material: Plastic
- Cable material: PUR
- EMC compliant according to EN 60947-5-2
- MTTFD: 1,469 years
- Operating temperature: -25 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Dimensions (H x L x W): 10mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC, PHD, Bimba
- Switching output: PNP with normally open function
- High switching frequency of 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating IP67 for dust and water protection
- Completely embedded mounting in the slot for protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Manufacturing equipment requiring precise cylinder position feedback
- Robotics and pneumatic system monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 8 mA without load
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MZC2-1V7PS-SQD Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
