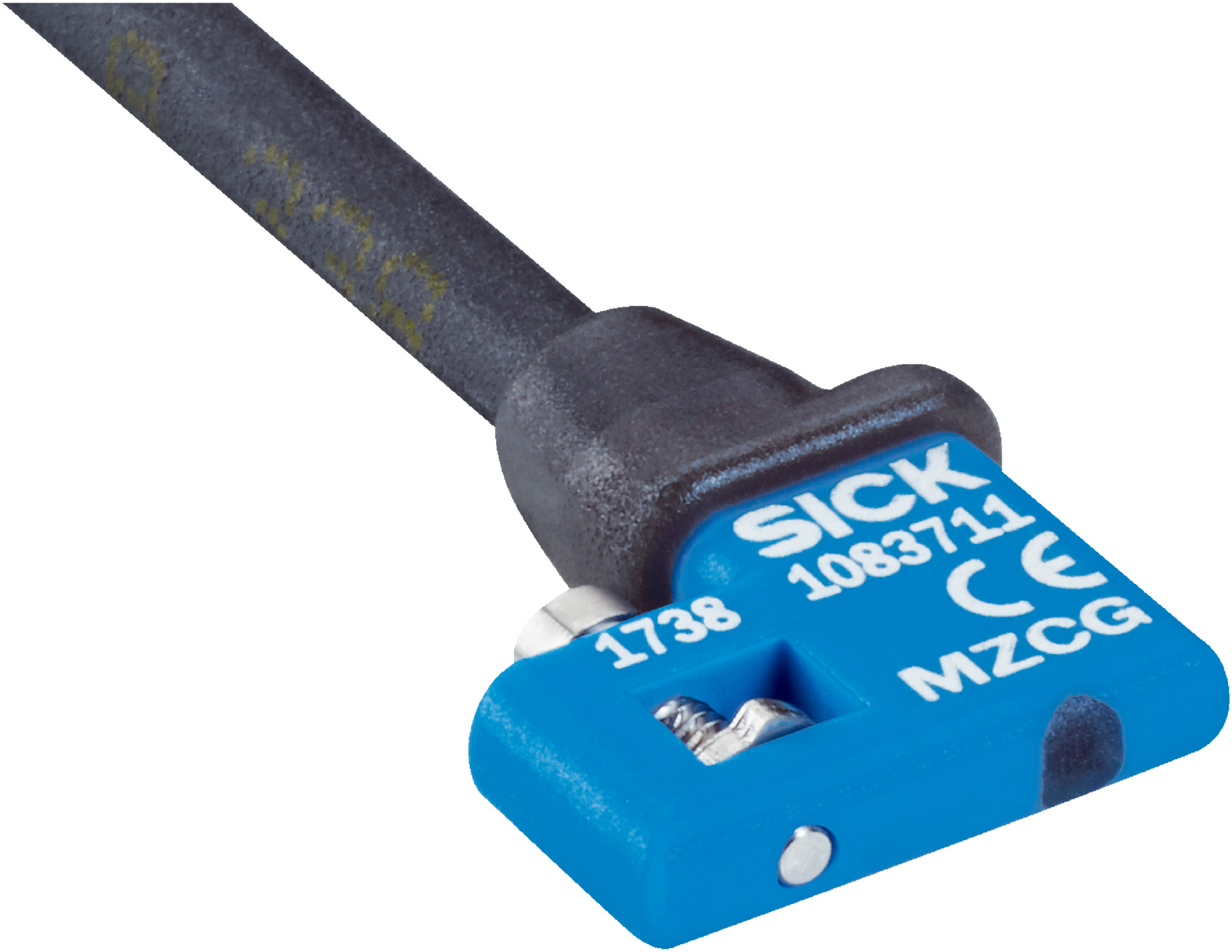

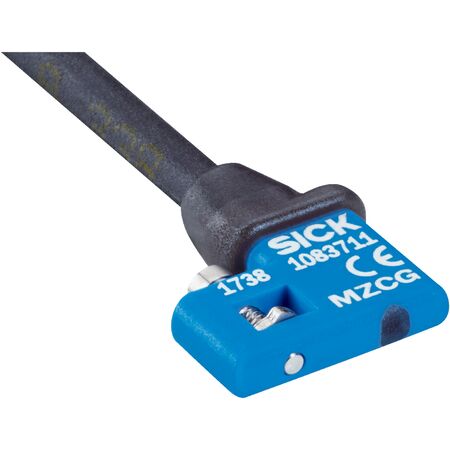

C-slot Cylinder Sensor | NPN Output | IP68 Rated | 1000 Hz Frequency | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position sensing in industrial automation. With an NPN switching output and a high switching frequency of 1,000 Hz, it ensures reliable performance in demanding environments. Rated IP68 for dust and water protection, this sensor operates effectively in temperatures ranging from -30 °C to +80 °C, making it ideal for pneumatic and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Switching output: NPN, normally open (NO)
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 7 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M12 3-pin connector, 0.3 m length
- Cable specifications: PUR, 0.14 mm² conductor cross section, 2.9 mm diameter
- Torsion force: ±270° / 10 cm
- Torsion cycles: 2,000,000
- Drag chain cycles: > 2,000,000
- Drag chain parameters: Max acceleration 5 m/s²
- Cable outlet: Radial
- Housing material: Plastic
- Dimensions (H x L x W): 12mm x 40mm x 12mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- NPN switching output with normally open (NO) function
- High switching frequency of 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating IP68 for dust and water protection
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 7 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M12 3-pin connector, 0.3 m length, suitable for drag chain use
- Operating temperature range from -30 °C to +80 °C
- High durability with over 2,000,000 drag chain cycles and torsion cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and industrial sensor integration to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory automation requiring precise switching output
- Use in environments requiring IP68 rated sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MZCG-1Z7NS-KQ0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
