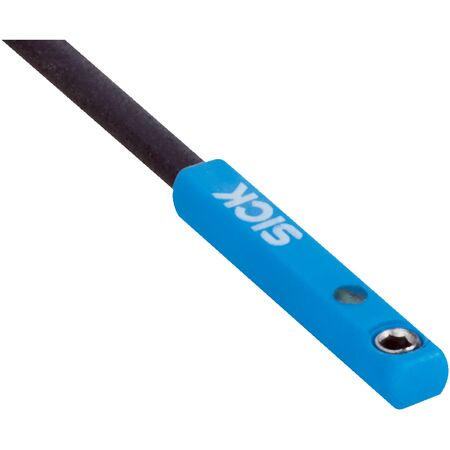

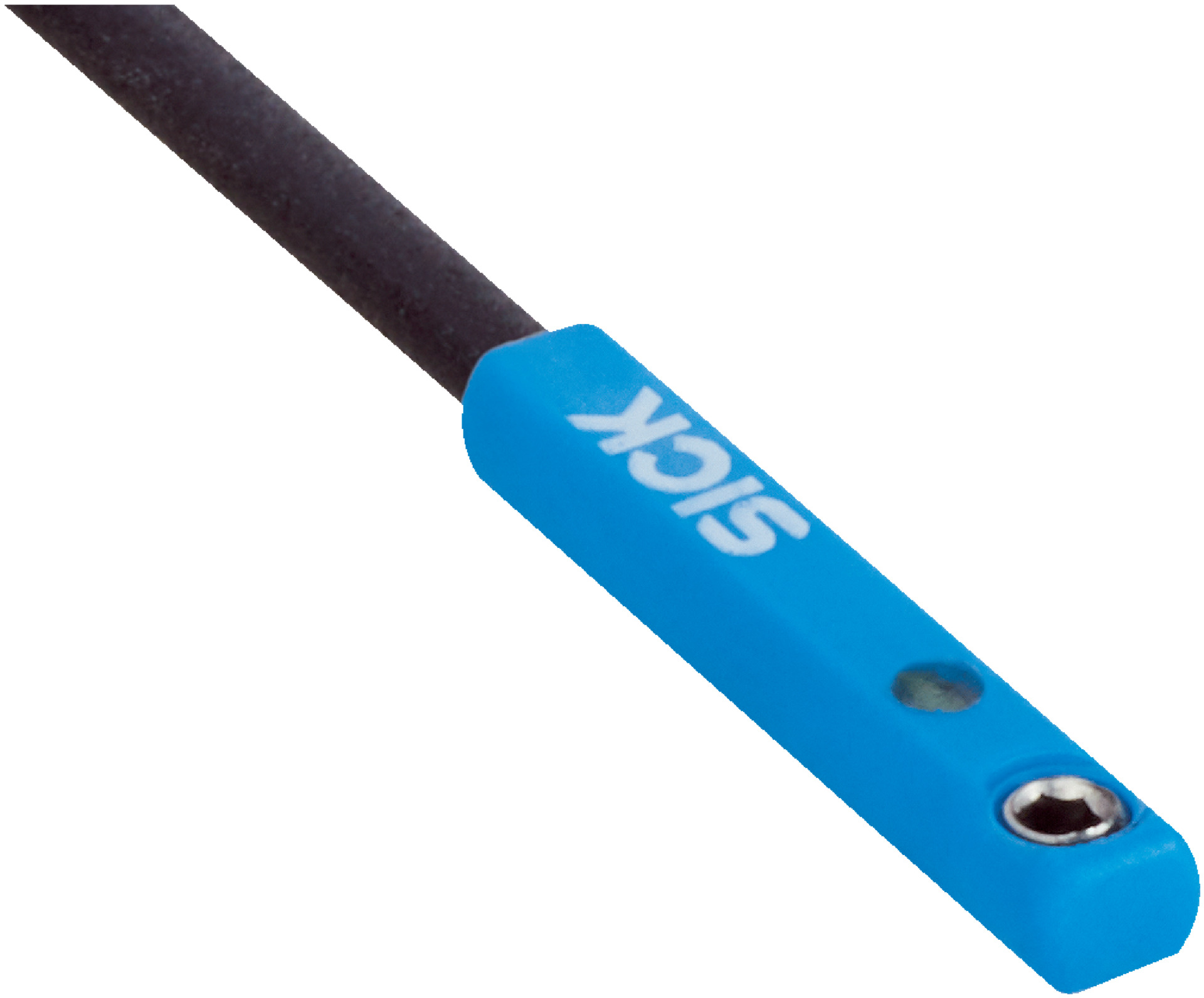

C-slot Cylinder Sensor | NPN Output | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The C-slot Cylinder Sensor is designed for precise position sensing in industrial automation, featuring an NPN output and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it offers excellent dust and water protection, making it ideal for pneumatic cylinder applications and machine safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Switching frequency: 1,000 Hz
- Response sensitivity: 1.7 mT
- Overrun distance: 2 mm
- Hysteresis: ≤ 0.4 mT
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Enclosure rating: IP67
- Connection type: Cable with M8, 3-pin plug, 0.5 m length
- Cable diameter: Ø 1.9 mm
- Material: Plastic housing, PUR cable
- Operating temperature: -25 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Reverse polarity, short-circuit, and power-up pulse protection included
- Status indicator LED included
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type sensor compatible with SMC, PHD, Bimba cylinders
- NPN switching output with normally open function
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Embedded mounting in the slot for protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 3-pin plug, 0.5 m length, PUR material
