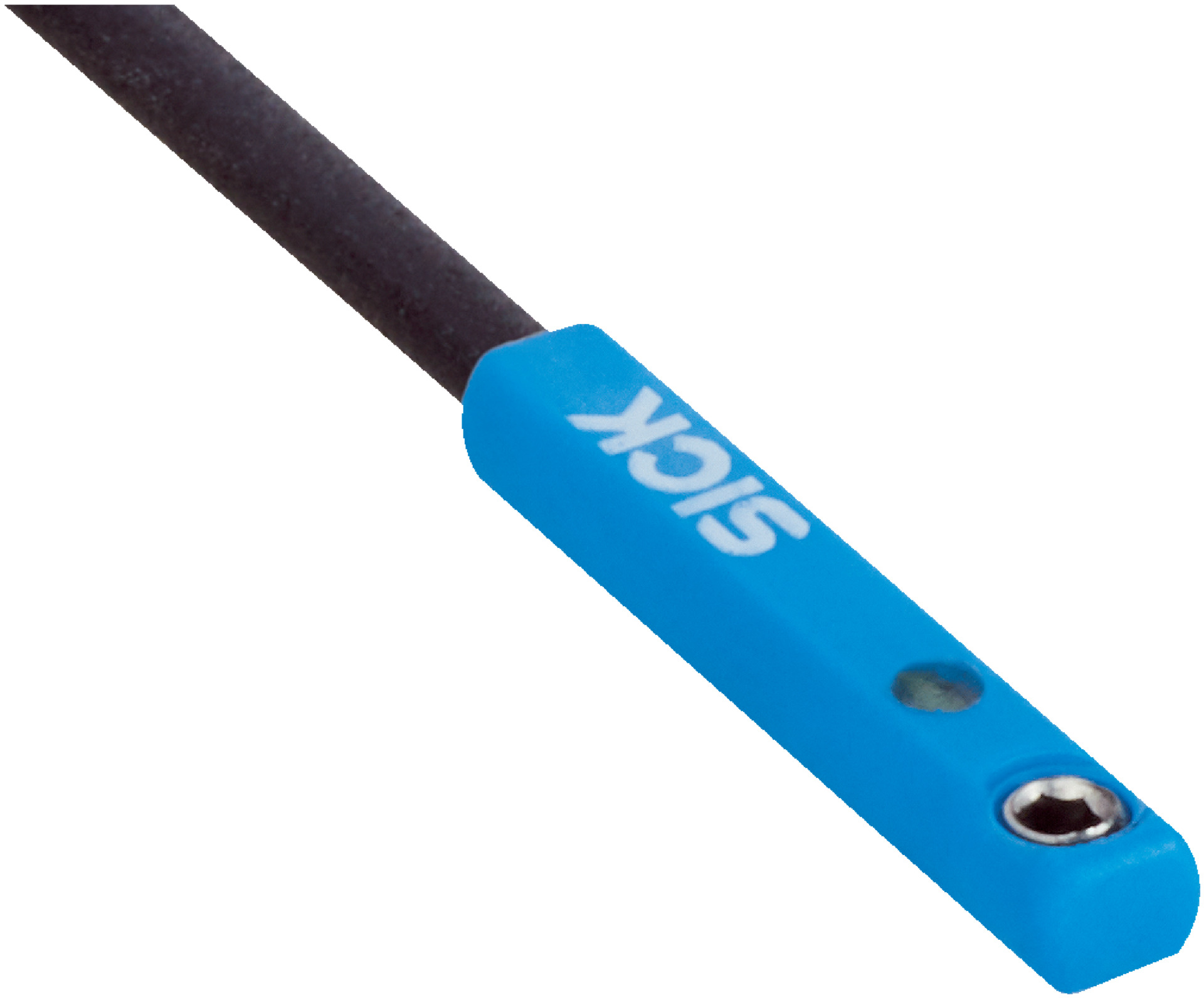

C-slot Cylinder Sensor | PNP Output | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position sensing in industrial automation. With a PNP output and a high switching frequency of 1,000 Hz, it ensures reliable performance in pneumatic applications. Its IP67 rating provides excellent protection against dust and water, making it ideal for harsh environments. Perfect for robotics, manufacturing process control, and pneumatic cylinder monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Connection type: 2 m PUR cable, 3-wire, stripped and tin plated
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Enclosure rating: IP67
- Housing material: Plastic
- Cable material: PUR
- Dimensions (H x L x W): 10mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC, PHD, Bimba
- Switching output: PNP with normally open function
- High switching frequency of 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating IP67 for dust and water protection
- Completely embedded mounting in the slot for protection
- Status indicator LED for operational feedback
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and mounting according to electrical safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic cylinder monitoring
- Manufacturing process control
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 8 mA reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

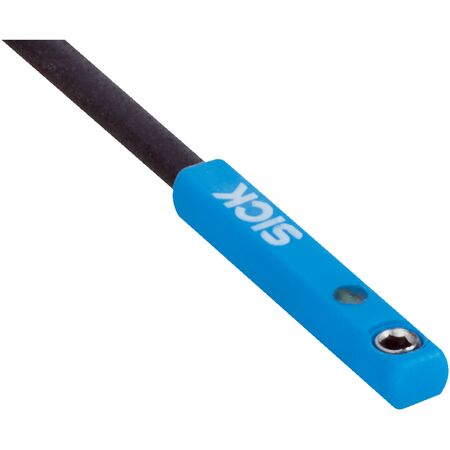

The SICK MZC2-1V7PS-SU0 C-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
